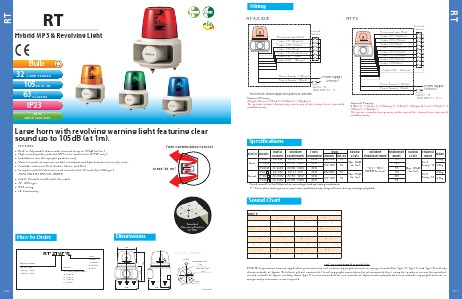

Wiring
RT
RT-A/C/D/E
RT-FV
External
Contact
External
Contact
Revolving Light (Red)
Audio CH1 (Skyblue)
Audio CH2 (Yellow)
Audio CH3 (Pink)
Audio CH4 (Light Green)
Audio CH5 (Purple)
Audio CH6 (Orange)
Audio CH7 (Green)
Audio CH8 (Blue)
Revolving Light (Red)
Audio CH1 (Skyblue)
Audio CH2 (Yellow)
Audio CH3 (Pink)
Audio CH4 (Light Green)
Audio STOP (Blue)
Audio COM (Brown)
Audio COM
Power Supply + (White)
Power Supply - (Black)
Power Supply
(24V DC)
(Brown)
Power Supply + (White)
Power Supply - (Black)
Fuse
24V DC 3A
100V/220V AC 1A
Fuse
24V DC 2A
100V/200V AC 0.5A
*more than 100ms input is required to activate.
Channel Priority:
4 (Light Green) > 3 (Pink) > 2 (Yellow) > 1 (Skyblue)
The greater number has priority when any of the channels are activated
simultaneously.
Power Supply
(24V DC)
Channel Priority:
8 (Blue) > 7 (Green) > 6 (Orange) > 5 (Red) > 4 (Light Green) > 3 (Pink) > 2
(Yellow) > 1 (Skyblue)
The greater number has priority when any of the channels are activated
simultaneously.
Specifications
Series Model
Bulb
Rated
Operating
Power
Sound
Voltage Voltage Range Consumption Ratings Repl. No. Level
Operating
Rotations per
Temperature Range
Minute
RT-24VF
DC 24V
DC 21 - 27V
24 W
24V 20W
55
Max. 90dB
Voice RT-100VF AC 100V AC 90 - 100V
32 W
(at 1m)
12V 15W
54
RT-220VF AC 220V AC180 - 240V
30 W
-10oC - +50oC
(85%RH or less)
RT-24
DC 24V
DC 21 - 27V
24 W
24V 20W
55
Max. 95dB
Sound RT-100
AC 100V AC 90 - 100V
32 W
(at 1m)
12V 15W
54
RT-220
AC 220V AC180 - 240V
30 W
Actual sound level will depend on sound type and operating 6
