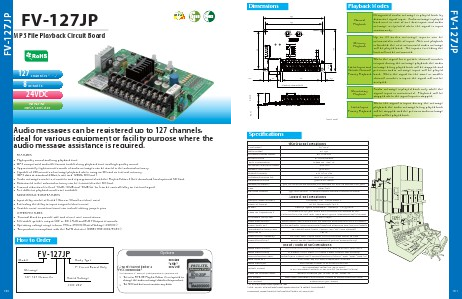

FV-127JP
MP3
FV-127JP
MP3 File Playback Circuit Board
127 Channels
8 Minutes
24VDC
(Binary)
NPN/PNP
Open-collector
Audio messages can be registered up to 127 channels,
ideal for various equipment or facility purpose where the
audio message assistance is required.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
FEATURES
High quality sound and long playback time.
MP3 compressed audio file format enables long playback time and high quality sound.
Approximately eight minutes worth of audio messages can be stored in the onboard memory.
Capable of 240 minutes of message playback when using an SD card as external memory.
(MP3 data at standard 64kbit/s rate and 128Mb SD Card)
Audio messages can be overwritten and reprogrammed with the Playlist Editor 2 (free download) and optional SD Card.
Data stored in the onboard memory can be extracted to the SD Card.
3 sound reduction levels of -10dB, -20dB and -30dB (at 1m) can be controlled by an external signal.
Five different playback modes are available
NOISE REDUCTION FEATURES
Input delay can be selected (10ms or 50ms) to reduce noise
Extending the delay to input a signal reduces noise
Another noise countermeasure can include setting jumper pins
OTHER FEATURES
Terminal block to provide safe and secure wire connections.
Selectable speaker output (2W or 4W), AUX and BUSY Output terminals.
Operating voltage range is from 19V to 29V DC (Rated Voltage: 24V DC)
This product is compliant with the RoHS directive (DIRECTIVE 2002/95/EC)
How to Order
FV-127JP
Model
Options
Body Type
P: Circuit Board Only
Message
PATLITE Playlist Editor 2
(Free Download)
SD Card
(2 GB)
SDV-2GP
(OS: Windows® 2000/XP/Vista/Windows 7/Windows 8)
180
Rated Voltage
> The new PATLITE Playlist Editor 2 is required to
J: DC 24V
127: 127 Channels
> The SD Card does not contain any data.
change the audio message data for this product.
