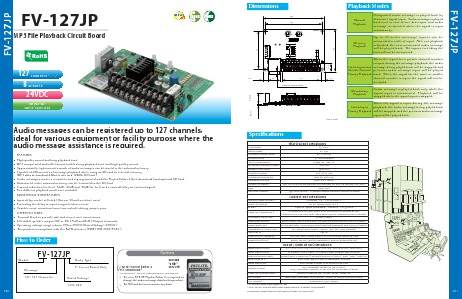

Dimensions
Playback Modes
Memory
Playback
Up to 23 audio message inputs can be
memorized in order of input. After one playback
is finished, the next memorized audio message
will be played back. The inputs exceeding the
limit will not be memorized.
19.5
90
100
134
12.2
28
92
9.4
FV-127JP
Normal
Playback
Designated audio message is played back by
distinctive signal input. Audio message is played
back once in case of one shot input, and audio
message is repeated when the signal is input
continuously.
144
When the signal for a greater channel number
is input during the message playback, the audio
Latest Input and message being played back will be stopped, and
Greater Channel previous audio message input will be played
Priority Playback back. When the signal for the same or smaller
channel number is input, the signal will not be
accepted.
6 (With SD Card inserted)
MAX 28
Momentary
Playback
Audio message is played back only while the
signal input is maintained. Playback will be
stopped when the signal input is stopped.
MAX 3
When the signal is input during the message
Latest Input
playback, the audio message being played back
Priority Playback will be stopped, and the previous audio message
input will be played back.
(Unit: mm)
Specifications
General Specifications
Model Name
Rated Voltage
Operating Voltage Range
Wiring Method
Power Consumption
Operating Temperature Range
Storage Temperature
Relative Humidity
Operating Environment
Installation Method
Vibration Resistance
Mass
Outer Dimensions
FV-127JP
DC 24V
DC 19 to 29V
M3 Terminal Bus
Maximum 15W (1*)
-10 to 50oC
-40 to 80oC
85% RH or less
Built-in Type Only
4 Screw Tie-down
45m/s2 (30Hz forward and back/Left and right for 2hrs., up and down for 4hrs.)
160g ±10%
144×100×28 [mm] (Lead Wires and Mounting Posts not included)
Audible Specifications
Replay Message Number
Audio File Format
Bit Rate
Maximum PlaybackTime
On-board Memory Size
Audio Start-up Time
Audio Pause Time
Compatable Memory Card
Card Format
Audio Rewrite Capability
Audio Rewrite Time
For Binary: 127 For Bit Input: 7
MPEG1-Audio Layer: (MP3)
32kbit/s; 64kbit/s(Standard); 128kbit/s Fs=44.1kHz
On-board Memory (4MB): About 8 min (Recorded with standard bit rate)
External Memory (SD Card): With 128MB about 240 min. (Standard Bit Rate Recording)
4,360,191byte
About 260ms (When sound mute not added at beginning and end of messages)
Unless specified, 100ms sound mute added at beginning and end of messages
SD Card Recommended Part No.: SDV-2GP (Sold Separate)
FAT16
Use with Patlite Playlist Editor 2 (Free Download) and an SD Card
About 180 sec. (When changing the 4MB on-board memory)
Input / Output Specifications
Signal Input Section
Signal Input Priority
Sound Reduction Input
Input Hold Time
Signal Input Type
Speaker Output
Maximum SoundPressure
AUX Output
BUSY Output
CH1 , CH2 , CH3 , CH4 , CH5 , CH6 , CH7 , STB , CLR , STOP, DEC1/VOL, DEC2
CLR Input > STOP Input > CH Input (Larger Channel takes Priority)
Speaker/AUX Output: Three Sound Reduction Levels of -10dB, -20dB, -30dB (1*)
More than 10ms or 50ms (Changeable Settings)
Non-voltage contact or NPN Open Collector
8Ω compatable speaker of 4W or more,
or 8Ω compatable speaker of 2W or more (Switchable Setting)
Speaker Output at 4W: 10
