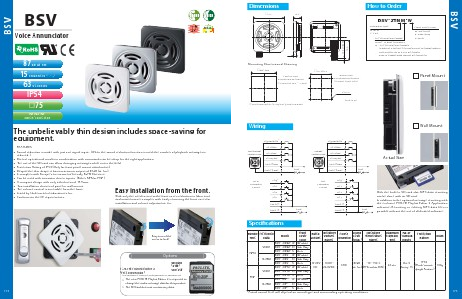

BSV
BSV
MP3
Voice Annunciator
87dB at 1m
15 Channels
63 Seconds
IP54
75
(Binary)
NPN/PNP
Open-collector
The unbelievably thin design includes space-saving for
equipment.
FEATURES
• Sound reduction is made with just one signal input. (When the sound reduction function is used, the number of playback messages is
reduced.)
• Diverse operational modes in combination with commands can be setup for the right application.
• The use of the SD card can allow changing messages while out in the field.
• Protection Rating of IP54 (Only for front panel mount attachment).
• Despite the thin shape, it has a maximum output of 87dB (at 1m).
• It complies with Europe's environment-friendly RoHS Directive.
• Can be used with transistor driven inputs. (Either NPN or PNP)
• A compact design with only a thickness of 19.9mm.
• Two installation choices of panel or wall mount.
• The volume control is accessible from the front.
• Listed by Underwriters Laboratories Inc.
With only the need to access the front cover, reduction in labor time
• Conforms to the CE requirements.
and maintenance is simpler with easily removing the front cover for
installation and volume adjustment, etc.
Easy installation from the front.
Easy turn of the
screw to lock!
Options
PATLITE Playlist Editor 2
(Free Download)
SD Card
(2 GB)
SDV-2GP
(OS: Windows® 2000/XP/Vista/Windows 7/Windows 8)
> The new PATLITE Playlist Editor 2 is required to
change the audio message data for this product.
> The SD Card does not contain any data.
174
