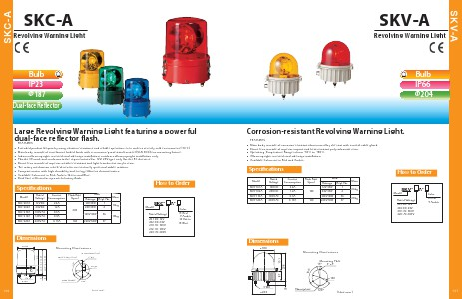

Revolving Warning Light
SKV-A
SKV-A
Bulb
IP66
Φ204
Corrosion-resistant Revolving Warning Light.
FEATURES
Main body is made of corrosion-resistant aluminum alloy die-cast with a metal cable gland.
Dome lens is made of superior impact and heat resistant polycarbonate resin.
Operating Temperature Range is from -300C to +800C.
Allows upright, inverted, and sideways installation.
Available Colors are in Red and Amber.
Specifications
How to Order
Model
Rated
Voltage
Current
Consumption
SKV-101A
SKV-102A
SKV-110A
SKV-120A
12V DC
24V DC
100V AC
200V AC
2.6A
1.2A
0.3A
0.13A
Flash Rate
(fpm)
140
120
Bulb
Ratings
Repl. No.
12V 35W
1
24V 35W
2
120V 40W
36
220V 30W
37
Mass
2.6kg
SKVModel
2.8kg
Rated Voltage
201: DC 12V
202: DC 24V
210: AC 100V
220: AC 200V
AColor
R: Red
Y: Amber
Dimensions
ø180
ø204
°
ø140
39
3-M8
Mounting Hole
15° 3- ø9
105
238
151
Mounting Dimensions
87
•
•
•
•
•
Nameplate
120°
(Unit: mm)
137
