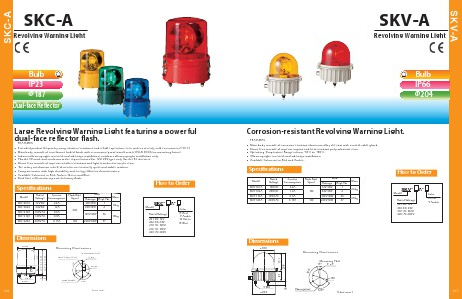

SKC-A
SKC-A
Revolving Warning Light
Bulb
IP23
Φ187
Dual-face Reflector
Large Revolving Warning Light featuring a powerful
dual-face reflector flash.
•
•
•
•
•
•
•
•
•
FEATURES
Extended product lifespan by using vibration-resistance and reliable operation, even under a severely cold environment (-300C).
Main body is made of a melamine baked finish with a corrosion-proof stainless steel (SUS 304) lens mounting fixture.
Indoors allows upright, inverted, and sideways installation; outdoors allows upright installation only.
Has the CE mark and conforms to the requirements (for 12V, 24V type only) for the EC directive.
Dome lens is made of superior weather-resistant and light-translucent acrylic resin.
The rotary mechanism is belt-driven for an extremely quiet and stable rotation.
Compact motor with high durability and energy-efficient characteristics.
Available Colors are in Red, Amber, Green, and Blue.
Dual-face reflector for a powerful rotary flash.
How to Order
Specifications
Model
Rated
Voltage
Current
Consumption
SKC-201A
SKC-202A
SKC-210A
SKC-212A
SKC-220A
12V DC
24V DC
100V AC
120V AC
200V AC
2.6A
1.2A
0.3A
0.4A
0.13A
Flash Rate
(fpm)
200
Bulb
Mass
Ratings Repl. No.
12V 35W
1
1.6kg
24V 35W
2
120V 40W
160
36
220V 30W
37
Dimensions
ø166
3-M8
ø187
136
17
18
Mounting Hole
3- ø9
Nameplate
40
°
Wire Entry Hole
120
88
150
238···DC Type
246···AC Type
Mounting Dimensions
ø140
120°
(Unit: mm)
1.8kg
SKCModel
Rated Voltage
201: DC 12V
202: DC 24V
210: AC 100V
212: AC 120V
220: AC 200V
AColor
R: Red
Y: Amber
G: Green
B: Blue
