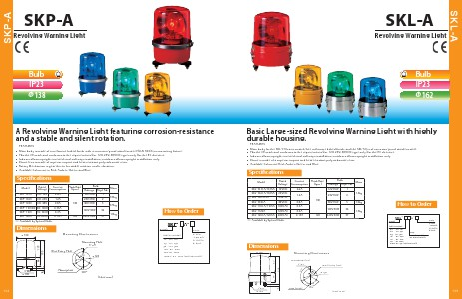

Revolving Warning Light
SKL-A
SKL-A
Bulb
IP23
Φ162
Basic Large-sized Revolving Warning Light with highly
durable housing.
•
•
•
•
•
FEATURES
Main body for the SKL-CA has a scratch-free melamine baked finish, and the SKL-SA is of corrosion-proof stainless steel.
Has the CE mark and conforms to the requirements (for 12V, 24V, 48V DC type only) for the EC directive.
Indoors allows upright, inverted, and sideways installation; outdoors allows upright installation only.
Dome is made of a superior impact and heat-resistant polycarbonate resin.
Available Colors are Red, Amber, Green, and Blue.
Specifications
Rated
Voltage
Model
SKL-101CA/101SA 12V DC
SKL-102CA/102SA 24V DC
24V AC
◎ SKL-102ACSA
SKL-104CA
48V DC
SKL-110CA/110SA 100V AC
SKL-112SA
120V AC
SKL-120CA/120SA 200V AC
◎ Available by Special Order
2.6A
Bulb
Ratings Repl. No.
12V 35W
1
1.2A
24V 35W
2
48V 35W
5
120V 40W
36
220V 30W
37
Current
Consumption
Flash Rate
(fpm)
140
0.8A
0.3A
0.4A
0.13A
120
1.4kg
How to Order
1.5kg
SKL-
A-
Rated Voltage
101 : DC 12V
102 : DC 24V
Body
104 : DC 48V
CA: Melamine Finish
110 : AC 100V
SA: Stainless Steel
112 : AC 120V
120 : AC 200V
102AC: AC 24V (Special Order)
Color
R: Red
Y: Amber
G: Green
B: Blue
Mounting Dimensions
120
Nameplate
Wire Entry Hole
76
°
218
125
Mounting Hole
3- ø9
17
3-M8
ø162
1.3kg
Model
Dimensions
ø150
Mass
50
ø140
120°
(Unit: mm)
135
