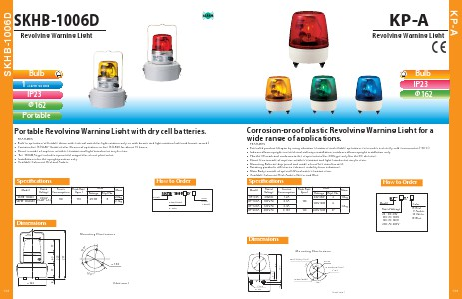

SKHB-1006D
SKHB-1006D
Revolving Warning Light
Bulb
1 Alarm Sound
IP23
Φ162
Portable
Portable Revolving Warning Light with dry cell batteries.
•
•
•
•
•
•
FEATURES
Built-in operation-selectable alarm with external switch for light rotation only, or with buzzer and light rotation (solenoid buzzer sound).
Contains five (5) SUM-1 batteries for 4 hours of operation, or five (5) LR20 for about 15 hours.
Dome is made of superior weather-resistant and light-translucent acrylic resin.
The 1006MA type includes a powerful magnet for secure placement.
Installation is for the upright position only.
Available Colors are Red and Amber.
Specifications
Model
Rated
Voltage
How to Order
Bulb
Mass
Ratings Repl. No.
2.0kg
6V 3W
8
2.1kg
Power
Flash Rate
Consumption
(fpm)
SKHB-1006D
DC6V
SKHB-1006MD (SUM-1x5)
3W
170
Dimensions
Mounting Dimensions
277
63
225
12
0°
77
ø94
ø162
138
8
77
ø140
120°
(Unit: mm)
SKHB-1006 DModel
Magnet Base
None: Without
M: With
Color
R: Red
Y: Amber
