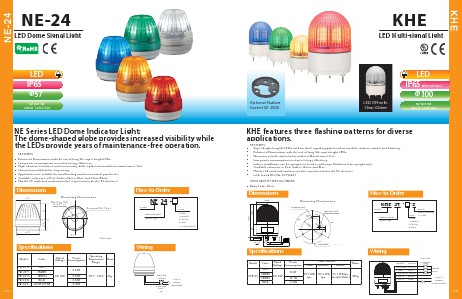

LED Multi-signal Light
KHE
KHE
LED
IP65 with SZ-200A
Φ100
LED Off with
Clear Globe
Optional Rubber
Gasket SZ-200A
NPN/PNP
Open-collector
KHE features three flashing patterns for diverse
applications.
FEATURES
Super-bright long life LED's used for three signaling patterns that simulate rotation, strobe, and blinking.
Enhanced Illumination with the use of long-life, super bright LEDs.
No motor or bulb replacement makes it Maintenance-free.
Low power consumption increases energy efficiency.
Indoor installation can be upright, inverted or sideways; Outdoors is for upright only.
Available colors are in Red, Amber, Green, and Blue.
Has the CE mark and conforms to the requirements for the EC directive.
Is UL Listed (File No. E215660).
•
•
•
•
•
•
•
•
AVAILABLE BY SPECIAL ORDER
• Body Color: Silver
Dimensions
How to Order
Mounting Dimensions
φ100
KHE 24 -
Mounting Hole
(90)
Wire Entry Hole
22.7
(146)
3-φ6
Rated Voltage
24: DC 24V
120°
φ7
φ1
120°
Color
R: Red
Y: Amber
G: Green
B: Blue
5.4
0
Dome
None: Colored
Z: Clear
(φ7.9)
(11)
16
49
0
-Z
Model
3-M5
(370)
Nameplate
(Unit: mm)
Specifications
Model
Color
KHE-24
RED
AMBER
GREEN
BLUE
Wiring
Rated
Power
Voltage Consumption
8.2W
DC 24V
10.1W
21.6W
Flash
Flash Patterns
Rotation
Strobe
Mass
55 ±10% 175 ±10% 75 ±10% fps
450g
fps
fps
(double-flash)
Strobe Brown
Rotation Green
Flash
Red
Common Yellow
Power White
Power Gray
External
Contact
Signal
Wire
Fuse
Power
Supply
(Non-polar)
119
