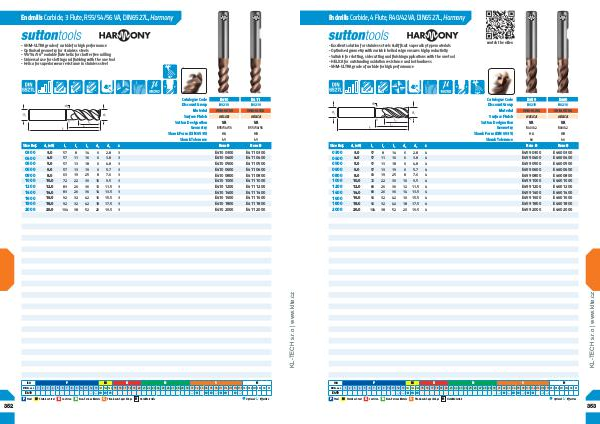

Endmills Carbide, 3 Flute, R55/54/56 VA, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- Optimised geometry for stainless steels
- 55/54/56° variable flute helix for chatter free milling
- Universal use for slotting and finishing with the one tool
- Helica for superior wear resistance in stainless steel
+
12º
45º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (e8)
0300
0400
0500
0600
0800
1000
1200
1400
1600
1800
2000
E411
B0210
VHM-ULTRA VHM-ULTRA
HELICA HELICA
VA VA
R55/54/56 R55/54/56
HA HB
h5 h5
l 1 l 2 l 3 d 2 d 3 z Item # Item #
57 8 14 6 2.8 3 57 11 16 6 3.8 3 57 13 18 6 4.8 3 57 13 19 6 5.7 3 63 19 25 8 7.6 3 72 22 30 10 9.5 3 83 26 36 12 11.5 3 83 26 36 14 13.5 3 92 32 42 16 15.5 3 92 32 42 18 17.5 3 104 38 52 20 19.5 3 E410 0300
E410 0400
E410 0500
E410 0600
E410 0800
E410 1000
E410 1200
E410 1400
E410 1600
E410 1800
E410 2000 E411 0300
E411 0400
E411 0500
E411 0600
E411 0800
E411 1000
E411 1200
E411 1400
E411 1600
E411 1800
E411 2000
