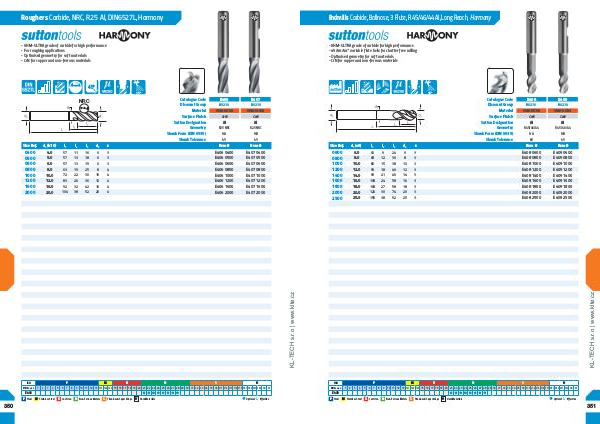

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 331

Endmills Carbide, Ballnose, 3 Flute, R45/46/44 AI, Long Reach, Harmony
- VHM-ULTRA grade of carbide for high performance
- 45/46/44° variable flute helix for chatter free milling
- Optimised geometry for soft materials
- CrN for copper and non-ferrous materials
+
15º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (e8)
0600
0800
1000
1200
1400
1600
1800
2000
2500
E409
B0210
VHM-ULTRA VHM-ULTRA
CrN CrN
AI AI
R45/46/44 R45/46/44
HA HB
h5 h5
l 1 l 2 l 3 d 2 z Item # Item #
62 9 24 6 3 68 12 30 8 3 80 15 38 10 3 93 18 46 12 3 93 21 46 14 3 108 24 58 16 3 108 27 58 18 3 126 30 74 20 3 150 38 92 25 3 E408 0600
E408 0800
E408 1000
E408 1200
E408 1400
E408 1600
E408 1800
E408 2000
E408 2500 E409 0600
E409 0800
E409 1000
E409 1200
E409 1400
E409 1600
E409 1800
E409 2000
E409 2500
www.klte.cz
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
E408 B0210
P
ISO
1
VDI 3323
2
3
4
5
6
7
M
8
K
N
Steel
H
E408
P
S
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
• Optimal • Effective
351
