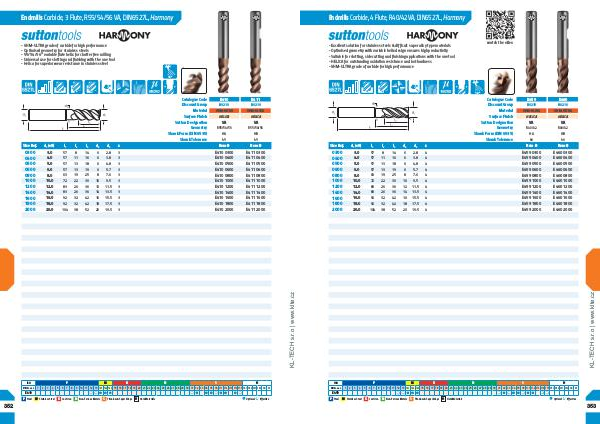

Endmills Carbide, 4 Flute, R40/42 VA, DIN6527L, Harmony
watch the video
- Excellent solution for stainless steels & difficult super alloy type materials
- Optimised geometry with variable helix design ensures high productivity
- Suitable for slotting, side cutting and finishing applications with the one tool
- HELICA for outstanding oxidation resistance and hot hardness
- VHM-ULTRA grade of carbide for high performance
+
45º
12º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (e8)
0300
0400
0500
0600
0800
1000
1200
1400
1600
1800
2000
E460
B0210
VHM-ULTRA VHM-ULTRA
HELICA HELICA
VA VA
R40/42 R40/42
HA HB
h6 h6
l 1 l 2 l 3 d 2 d 3 z Item # Item #
57 8 14 6 2.8 4 57 11 16 6 3.8 4 57 13 18 6 4.8 4 57 13 19 6 5.7 4 63 19 25 8 7.6 4 72 22 30 10 9.5 4 83 26 36 12 11.5 4 83 26 36 14 13.5 4 92 32 42 16 15.5 4 92 32 42 18 17.5 4 104 38 52 20 19.5 4 E459 0300
E459 0400
E459 0500
E459 0600
E459 0800
E459 1000
E459 1200
E459 1400
E459 1600
E459 1800
E459 2000 E460 0300
E460 0400
E460 0500
E460 0600
E460 0800
E460 1000
E460 1200
E460 1400
E460 1600
E460 1800
E460 2000
www.klte.cz
3.0
4.0
5.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
E459 B0210
P
2
3
4
5
6
7
M
8
Steel
N
E459
P
K
M
Stainless Steel
K
Cast Iron
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
1
ISO
VDI 3323
• Optimal • Effective
