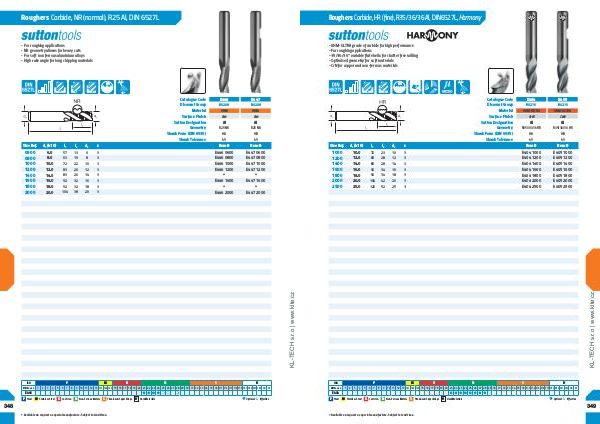

Roughers Carbide, NR (normal), R25 Al, DIN 6527L
- For roughing applications
- NR geometry allows for heavy cuts
- For soft non ferrous aluminium alloys
- High rake angle for long chipping materials
NR
+
15º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (h10)
0600
0800
1000
1200
1400
1600
1800
2000
E447
B0208
VHM VHM
Brt Brt
Al Al
R25 NR R25 NR
HA HB
h5 h5
l 1 l 2 d 2 z Item # Item #
57 13 6 3 63 19 8 3 72 22 10 3 83 26 12 3 83 26 14 3 92 32 16 3 92 32 18 3 104 38 20 3 E446 0600
E446 0800
E446 1000
E446 1200
•
E446 1600
•
E446 2000 E447 0600
E447 0800
E447 1000
E447 1200
•
E447 1600
•
E447 2000
www.klte.cz
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
E446 B0208
P
1
2
3
4
5
6
7
M
8
K
N
Steel
E446
P
M
Stainless Steel
K
Cast Iron
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
N
Non-Ferrous Metals
S
348
• Available on request as special manufacture. Subject to lead time.
Titanium & Super Alloys
H
Hard Materials
ISO
VDI 3323
• Optimal • Effective
