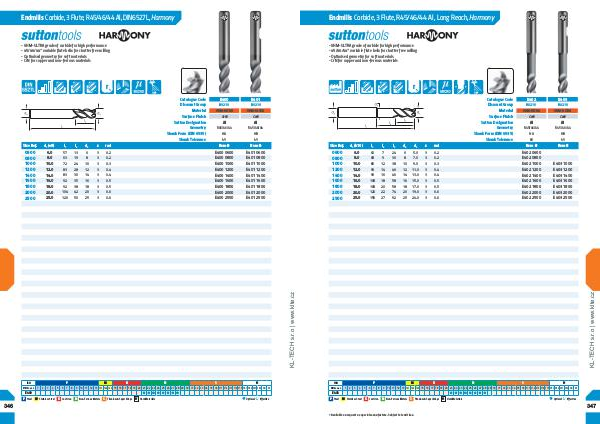

Endmills Carbide, 3 Flute, R45/46/44 Al, Long Reach, Harmony
- VHM-ULTRA grade of carbide for high performance
- 45/46/44° variable flute helix for chatter free milling
- Optimised geometry for soft materials
- CrN for copper and non-ferrous materials
r
+
15º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (k10)
0600
0800
1000
1200
1400
1600
1800
2000
2500
E403
B0210
VHM-ULTRA VHM-ULTRA
CrN CrN
Al Al
R45/46/44 R45/46/44
HA HB
h5 h5
l 1 l 2 l 3 d 2 d 3 z rad Item # Item #
62 7 24 6 5.0 3 0.2 68 9 30 8 7.0 3 0.2 80 12 38 10 9.0 3 0.3 93 14 46 12 11.0 3 0.4 E402 0600
E402 0800
E402 1000
E402 1200
E402 1400
E402 1600
E402 1800
E402 2000
E402 2500 E403 1000
E403 1200
E403 1400
E403 1600
E403 1800
E403 2000
E403 2500
93 16 46 14 13.0 3 0.4
108 18 58 16 15.0 3 0.5
108 20 58 18 17.0 3 0.5
126 22 74 20 19.0 3 0.6
150 27 92 25 24.0 3 0.6
www.klte.cz
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
E402 B0210
P
ISO
1
VDI 3323
2
3
4
5
6
7
M
8
K
N
Steel
H
E402
P
S
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
• Optimal • Effective
347
• Available on request as special manufacture. Subject to lead time.
