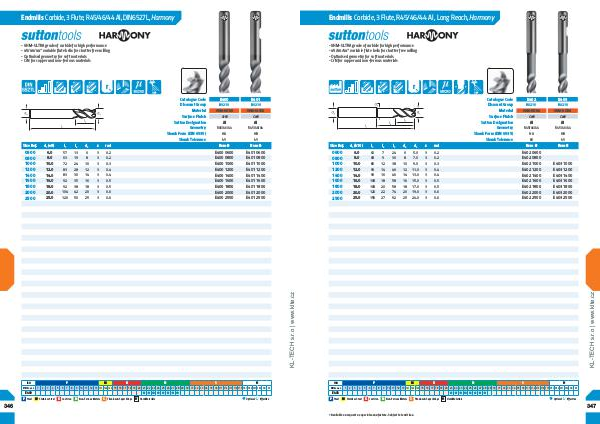

Endmills Carbide, 3 Flute, R45/46/44 AI, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- 45/46/44° variable flute helix for chatter free milling
- Optimised geometry for soft materials
- CrN for copper and non-ferrous materials
r
+
15º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (e8)
0600
0800
1000
1200
1400
1600
1800
2000
2500
E401
B0210
VHM-ULTRA VHM-ULTRA
CrN CrN
Al Al
R45/46/44 R45/46/44
HA HB
h5 h5
l 1 l 2 d 2 z rad Item # Item #
57 13 6 3 0.2 63 19 8 3 0.2 72 24 10 3 0.3 83 28 12 3 0.4 83 30 14 3 0.4 92 35 16 3 0.5 92 38 18 3 0.5 104 42 20 3 0.6 120 50 25 3 0.6 E400 0600
E400 0800
E400 1000
E400 1200
E400 1400
E400 1600
E400 1800
E400 2000
E400 2500 E401 0600
E401 0800
E401 1000
E401 1200
E401 1400
E401 1600
E401 1800
E401 2000
E401 2500
