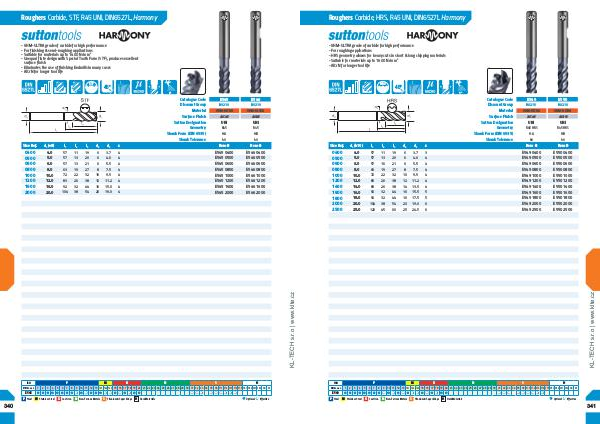

Roughers Carbide, HRS, R45 UNI, DIN6527L Harmony
- VHM-ULTRA grade of carbide for high performance
- For roughing applications
- HRS geometry allows for heavy cuts in short & long chipping materials
- Suitable for materials up to 1600 N/mm 2
- AlCrN for longer tool life
HRS
+
45º
5º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (h10)
0400
0500
0600
0800
1000
1200
1400
1600
1800
2000
2500
E550
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
UNI UNI
R45 HRS R45 HRS
HA HB
h6 h6
l 1 l 2 l 3 d 2 d 3 z Item # Item #
57 11 19 6 3.7 3 57 13 20 6 4.6 4 57 16 21 6 5.5 4 63 19 27 8 7.5 4 72 22 32 10 9.5 4 83 26 38 12 11.2 4 83 26 38 14 13.5 4 92 32 44 16 15.5 5 92 32 44 16 17.5 5 104 38 54 20 19.0 6 120 45 60 25 24.5 6 E549 0400
E549 0500
E549 0600
E549 0800
E549 1000
E549 1200
E549 1400
E549 1600
E549 1800
E549 2000
E549 2500 E550 0400
E550 0500
E550 0600
E550 0800
E550 1000
E550 1200
E550 1400
E550 1600
E550 1800
E550 2000
E550 2500
www.klte.cz
4.0
5.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
E549 B0210
P
Steel
3
4
5
6
7
M
8
K
N
M
Stainless Steel
K
Cast Iron
S
H
9 10 11 12 13 14.1 14.2 14.3 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37.1 37.2 37.3 37.4 37.5 38.1 38.2 39.1 39.2 40 41
E549
P
2
N
Non-Ferrous Metals
S
Titanium & Super Alloys
H
Hard Materials
1
ISO
VDI 3323
• Optimal • Effective
