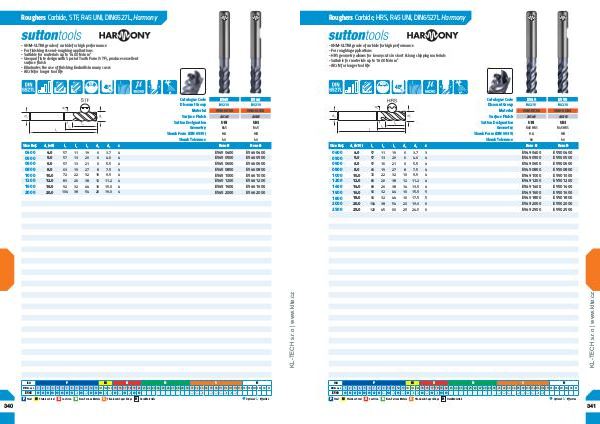

Roughers Carbide, STF, R45 UNI, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- For finishing & semi-roughing applications
- Suitable for materials up to 1400 N/mm 2
- Unequal flute design with Special Tooth Form (STF), produces excellent
surface finish
- Eliminates the use of finishing Endmills in many cases
- AlCrN for longer tool life
STF
+
45º
8º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (e8)
0400
0500
0600
0800
1000
1200
1600
2000
E546
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
UNI UNI
R45 R45
HA HB
h6 h6
l 1 l 2 l 3 d 2 d 3 z Item # Item #
57 11 19 6 3.7 4 57 13 20 6 4.6 4 57 13 21 6 5.5 4 63 19 27 8 7.5 4 72 22 32 10 9.5 4 83 26 38 12 11.2 4 92 32 44 16 15.0 4 104 38 54 20 19.0 4 E545 0400
E545 0500
E545 0600
E545 0800
E545 1000
E545 1200
E545 1600
E545 2000 E546 0400
E546 0500
E546 0600
E546 0800
E546 1000
E546 1200
E546 1600
E546 2000
