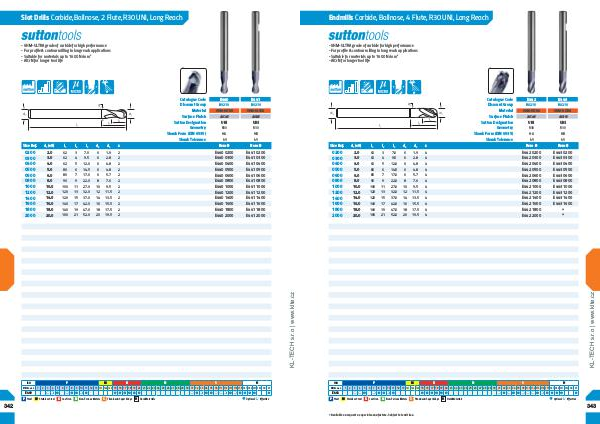

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Seite 322

Slot Drills Carbide, Ballnose, 2 Flute, R30 UNI, Long Reach
- VHM-ULTRA grade of carbide for high performance
- For profile & contour milling in long reach applications
- Suitable for materials up to 1600 N/mm 2
- AlCrN for longer tool life
+
6º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (e8)
0200
0300
0400
0500
0600
0800
1000
1200
1400
1600
1800
2000
E441
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
UNI UNI
R30 R30
HA HB
h5 h5
l 1 l 2 l 3 d 2 d 3 z Item # Item #
62 3 7.0 6 1.9 2 62 4 9.5 6 2.8 2 62 5 12.0 6 4.8 2 80 6 14.5 6 4.8 2 80 7 17.0 6 5.7 2 90 9 22.0 8 7.6 2 100 11 27.0 10 9.5 2 120 13 32.0 12 11.5 2 120 15 37.0 14 13.5 2 140 17 42.0 16 15.5 2 140 19 47.0 18 17.5 2 160 21 52.0 20 19.5 2 E440 0200
E440 0300
E440 0400
E440 0500
E440 0600
E440 0800
E440 1000
E440 1200
E440 1400
E440 1600
E440 1800
E440 2000 E441 0200
E441 0300
E441 0400
E441 0500
E441 0600
E441 0800
E441 1000
E441 1200
E441 1400
E441 1600
E441 1800
E441 2000
www.klte.cz
2.0
3.0
4.0
5.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
E440 B0210
