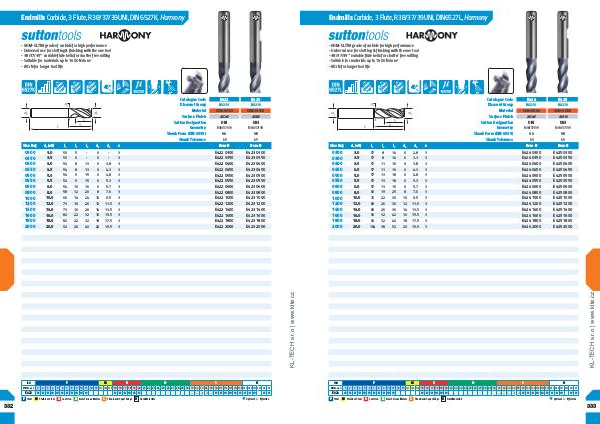

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 313

Endmills Carbide, 3 Flute, R38/37/39 UNI, DIN6527L, Harmony
- VHM-ULTRA grade of carbide for high performance
- Universal use for slotting & finishing with the one tool
- 38/37/39° variable flute helix for chatter free milling
- Suitable for materials up to 1600 N/mm 2
- AlCrN for longer tool life
+
45º
6º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
3
Size Ref.
d 1 (e8)
0300
0350
0400
0450
0500
0550
0600
0800
1000
1200
1400
1600
1800
2000
E425
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
UNI UNI
R38/37/39 R38/37/39
HA HB
h5 h5
l 1 l 2 l 3 d 2 d 3 z Item # Item #
57 8 14 6 2.8 3 57 8 14 6 3.3 3 57 11 16 6 3.8 3 57 11 16 6 4.3 3 57 13 18 6 4.8 3 57 13 18 6 5.3 3 57 13 19 6 5.7 3 63 19 25 8 7.6 3 72 22 30 10 9.5 3 83 26 36 12 11.5 3 83 26 36 14 13.5 3 92 32 42 16 15.5 3 92 32 42 18 17.5 3 104 38 52 20 19.5 3 E424 0300
E424 0350
E424 0400
E424 0450
E424 0500
E424 0550
E424 0600
E424 0800
E424 1000
E424 1200
E424 1400
E424 1600
E424 1800
E424 2000 E425 0300
E425 0350
E425 0400
E425 0450
E425 0500
E425 0550
E425 0600
E425 0800
E425 1000
E425 1200
E425 1400
E425 1600
E425 1800
E425 2000
