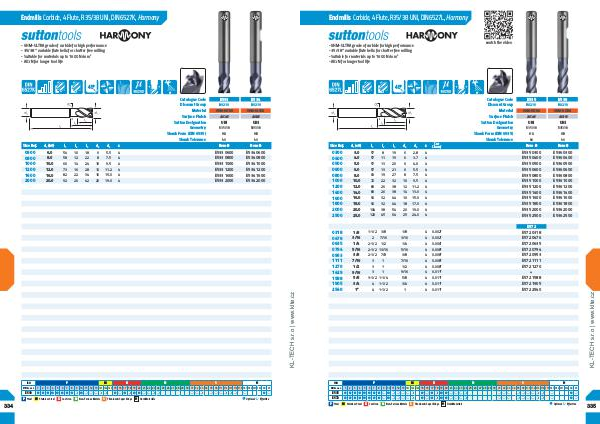

Endmills Carbide, 4 Flute, R35/38 UNI, DIN6527K, Harmony
- VHM-ULTRA grade of carbide for high performance
- 35/38° variable flute helix for chatter free milling
- Suitable for materials up to 1600 N/mm 2
- AlCrN for longer tool life
+
45º
6º
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Shank Form (DIN 6535)
Shank Tolerance
Size Ref.
d 1 (h9)
0600
0800
1000
1200
1600
2000
E534
B0210
VHM-ULTRA VHM-ULTRA
AlCrN AlCrN
UNI UNI
R35/38 R35/38
HA HB
h6 h6
l 1 l 2 l 3 d 2 d 3 z Item # Item #
54 10 18 6 5.5 4 58 12 22 8 7.5 4 66 14 24 10 9.5 4 73 16 28 12 11.2 4 82 22 34 16 15.0 4 92 26 42 20 19.0 4 E533 0600
E533 0800
E533 1000
E533 1200
E533 1600
E533 2000 E534 0600
E534 0800
E534 1000
E534 1200
E534 1600
E534 2000
