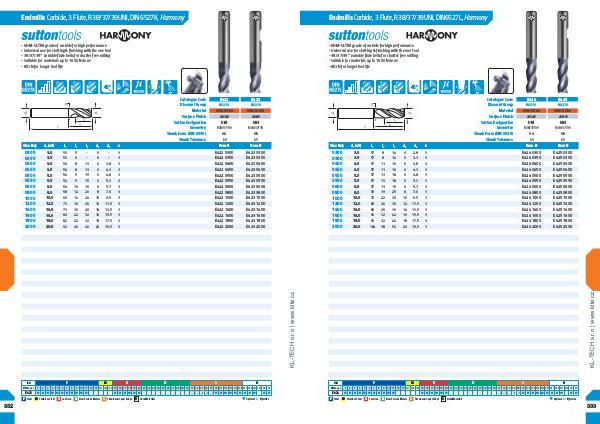

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Seite 312

Endmills Carbide, 3 Flute, R38/37/39 UNI, DIN 6527K, Harmony
- VHM-ULTRA grade of carbide for high performance
- Universal use for slotting & finishing with the one tool
- 38/37/39° variable flute helix for chatter free milling
- Suitable for materials up to 1600 N/mm 2
- AlCrN for longer tool life
+
45º
6º
