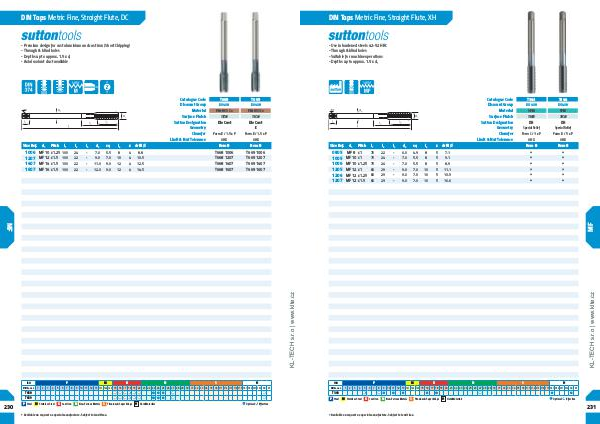

DIN Taps Metric Fine, Straight Flute, XH
- Use in hardened steels 42-52 HRc
- Through & blind holes
- Suitable for machine operations
- Depths up to approx. 1.5 x d 1
d 1 Pitch l 1 l 2 l 3 d 2 sq l 4 z drill ø
MF 8
MF 10
MF 10
MF 12
MF 12
MF 12 x 1
x 1
x 1.25
x 1
x 1.25
x 1.5 70 22 - 6.0 4.9 8 5 7.1
75 24 - 7.0 5.5 8 5 9.1
75 24 - 7.0 5.5 8 5 8.9
82 29 - 9.0 7.0 10 5 11.1
82 29 - 9.0 7.0 10 5 10.9
82 29 - 9.0 7.0 10 5 10.6
Size Ref.
T343 T344
DO408 DO408
SPM SPM
TiCN TiCN
XH XH
Special Relief Special Relief
Form C / 3 x P Form D / 5 x P
6HX 6HX
Item # Item #
•
•
•
•
•
• •
•
•
•
•
•
www.klte.cz
0805
1005
1006
1205
1206
1207
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
P
Steel
M
Stainless Steel
K
M
Cast Iron
K
N
S
H
