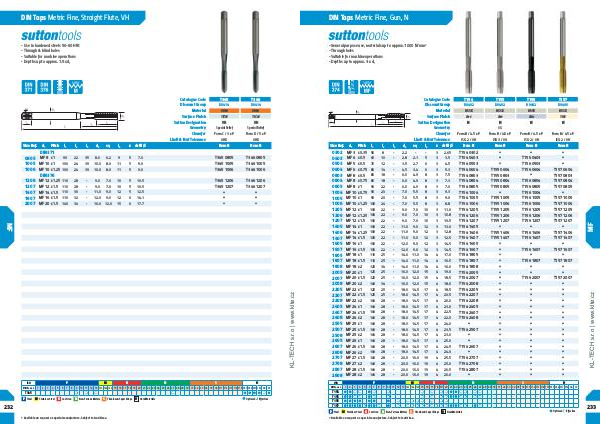

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 212

DIN Taps Metric Fine, Straight Flute, VH
- Use in hardened steels 50-60 HRc
- Through & blind holes
- Suitable for machine operations
- Depths up to approx. 1.5 x d 1
Size Ref.
d 1
Pitch
DIN 371
0805 MF 8 x 1
1005 MF 10 x 1
1006 MF 10 x 1.25
DIN 376
1206 MF 12 x 1.25
1207 MF 12 x 1.5
1407 MF 14 x 1.5
1607 MF 16 x 1.5
2007 MF 20 x 1.5
l 1 l 2 l 3
d 2 sq
l 4 z drill ø
90 22 35 8.0 6.2 9 5 7.0
100 24 39 10.0 8.0 11 5 9.0
100 24 39 10.0 8.0 11 5 9.0
110 28 - 9.0 7.0 10 5 10.5
110 28 - 9.0 7.0 10 5 10.5
110 30 - 11.0 9.0 12 5 12.5
110 32 - 12.0 9.0 12 6 14.1
140 34 - 16.0 12.0 15 6 17.7
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T345 T346
D0414 D0414
VHM VHM
TiCN TiCN
VH VH
Special Relief Special Relief
Form C / 3 x P Form D / 5 x P
6HX 6HX
Item # Item #
T345 0805
T345 1005
T345 1006 T346 0805
T346 1005
T346 1006
T345 1206
T345 1207
•
•
• T346 1206
T346 1207
•
•
•
