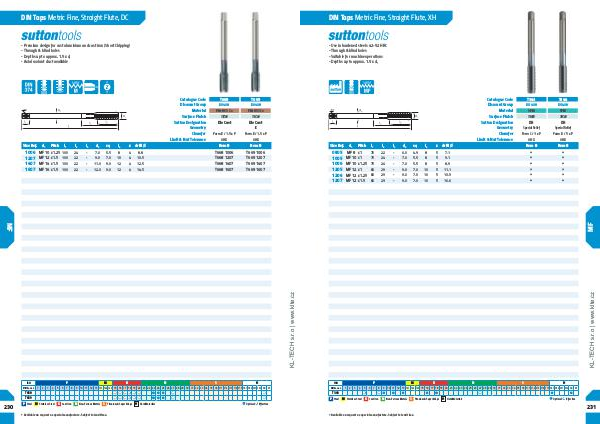

DIN Taps Metric Fine, Straight Flute, DC
- Premium design for cast aluminium and cast iron (Short Chipping)
- Through & blind holes
- Depths up to approx. 1.5 x d 1
- Axial coolant duct available
d 1 Pitch l 1 l 2 l 3 d 2 sq l 4 z drill ø
MF 10
MF 12
MF 14
MF 16 x 1.25
x 1.5
x 1.5
x 1.5 100 24 - 7.0 5.5 8 4 8.8
100 22 - 9.0 7.0 10 4 10.5
100 22 - 11.0 9.0 12 4 12.5
100 22 - 12.0 9.0 12 4 14.5
Size Ref.
1006
1207
1407
1607
Catalogue Code
Discount Group
Material
Surface Finish
Sutton Designation
Geometry
Chamfer
Limit & Nut Tolerance
T668 T669
D0408 D0408
PM-HSS Co PM-HSS Co
TiCN TiCN
Die Cast Die Cast
Form E / 1.5 x P Form E / 1.5 x P
6HX 6HX
IK
Item # Item #
T668 1006
T668 1207
T668 1407
T668 1607 T669 1006
T669 1207
T669 1407
T669 1607
