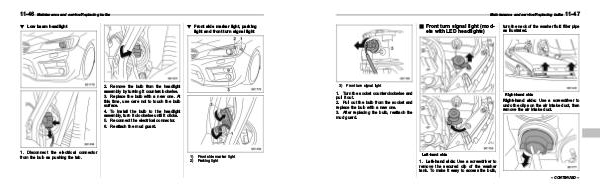

Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 513

Maintenance and service/Replacing bulbs
& Front turn signal light (mod-
els with LED headlights)
3)
11-47
turn the neck of the washer fluid filler pipe
as illustrated.
Front turn signal light
1. Turn the socket counterclockwise and
pull it out.
2. Pull out the bulb from the socket and
replace the bulb with a new one.
3. After replacing the bulb, reattach the
mud guard.
Right-hand side
Right-hand side: Use a screwdriver to
undo the clips on the air intake duct, then
remove the air intake duct.
Left-hand side
1. Left-hand side: Use a screwdriver to
remove the secured clip of the washer
tank. To make it easy to access the bulb,
– CONTINUED –
