Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 512

11-46

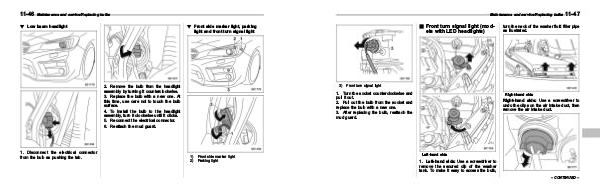

Maintenance and service/Replacing bulbs
! Low beam headlight
! Front side marker light, parking
light and front turn signal light
2. Remove the bulb from the headlight
assembly by turning it counterclockwise.
3. Replace the bulb with a new one. At
this time, use care not to touch the bulb
surface.
4. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
5. Reconnect the electrical connector.
6. Reattach the mud guard.
1. Disconnect the electrical connector
from the bulb as pushing the tab.
1)
2)
Front side marker light
Parking light
