346

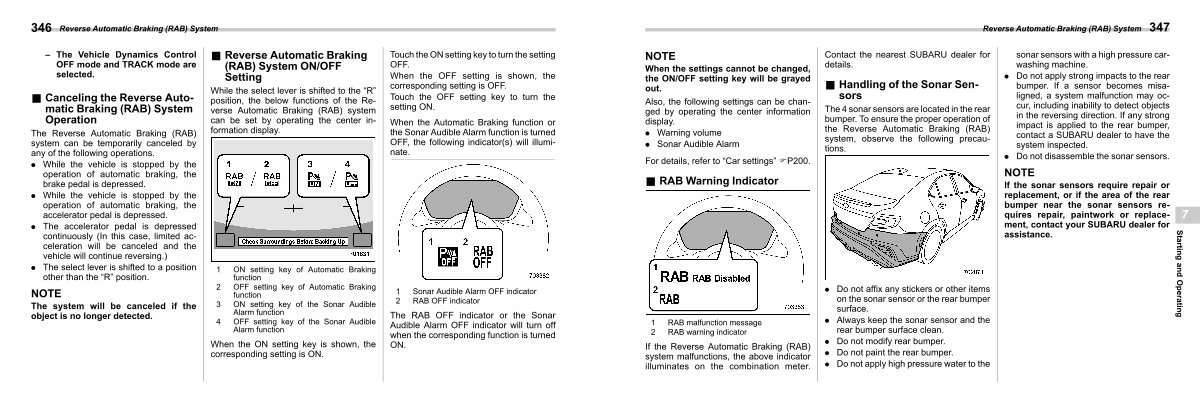

Reverse Automatic Braking( RAB) System
– The Vehicle Dynamics Control OFF mode and TRACK mode are selected.
& Canceling the Reverse Automatic Braking( RAB) System Operation s07bn04
The Reverse Automatic Braking( RAB) system can be temporarily canceled by any of the following operations.
. While the vehicle is stopped by the operation of automatic braking, the brake pedal is depressed.
. While the vehicle is stopped by the operation of automatic braking, the accelerator pedal is depressed.
. The accelerator pedal is depressed continuously( In this case, limited acceleration will be canceled and the vehicle will continue reversing.)
. The select lever is shifted to a position other than the“ R” position.
NOTE
The system will be canceled if the object is no longer detected.
& Reverse Automatic Braking( RAB) System ON / OFF Setting s07bn05
While the select lever is shifted to the“ R” position, the below functions of the Reverse Automatic Braking( RAB) system can be set by operating the center information display.
1 ON setting key of Automatic Braking function
2 OFF setting key of Automatic Braking function
3 ON setting key of the Sonar Audible Alarm function
4 OFF setting key of the Sonar Audible Alarm function
When the ON setting key is shown, the corresponding setting is ON.
Touch the ON setting key to turn the setting OFF.
When the OFF setting is shown, the corresponding setting is OFF.
Touch the OFF setting key to turn the setting ON.
When the Automatic Braking function or the Sonar Audible Alarm function is turned OFF, the following indicator( s) will illuminate.
1 Sonar Audible Alarm OFF indicator 2 RAB OFF indicator
The RAB OFF indicator or the Sonar Audible Alarm OFF indicator will turn off when the corresponding function is turned ON.
