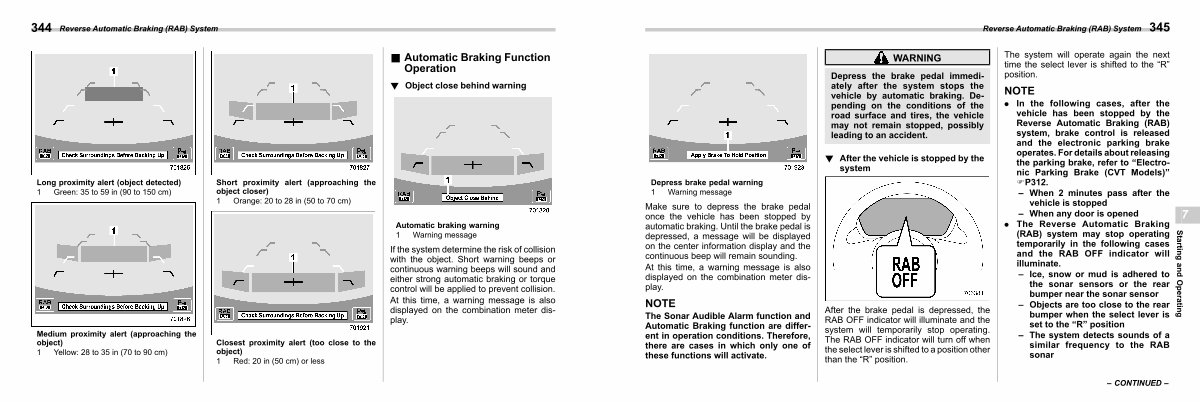

Depress brake pedal warning 1 Warning message
Make sure to depress the brake pedal once the vehicle has been stopped by automatic braking. Until the brake pedal is depressed, a message will be displayed on the center information display and the continuous beep will remain sounding.
At this time, a warning message is also displayed on the combination meter display.
NOTE
The Sonar Audible Alarm function and Automatic Braking function are different in operation conditions. Therefore, there are cases in which only one of these functions will activate.
|
WARNING
Depress the brake pedal immediately after the system stops the vehicle by automatic braking. Depending on the conditions of the road surface and tires, the vehicle may not remain stopped, possibly leading to an accident.
! After the vehicle is stopped by the system s07bn0802
After the brake pedal is depressed, the RAB OFF indicator will illuminate and the system will temporarily stop operating. The RAB OFF indicator will turn off when the select lever is shifted to a position other than the“ R” position.
|
The system will operate again the next time the select lever is shifted to the“ R” position.
NOTE
. In the following cases, after the vehicle has been stopped by the Reverse Automatic Braking( RAB) system, brake control is released and the electronic parking brake operates. For details about releasing the parking brake, refer to“ Electronic Parking Brake( CVT Models)” FP312. – When 2 minutes pass after the vehicle is stopped – When any door is opened
. The Reverse Automatic Braking( RAB) system may stop operating temporarily in the following cases and the RAB OFF indicator will illuminate. – Ice, snow or mud is adhered to the sonar sensors or the rear bumper near the sonar sensor
– Objects are too close to the rear bumper when the select lever is set to the“ R” position
– The system detects sounds of a similar frequency to the RAB sonar
|
7
Starting and Operating
|
|||||
– CONTINUED – |
