344

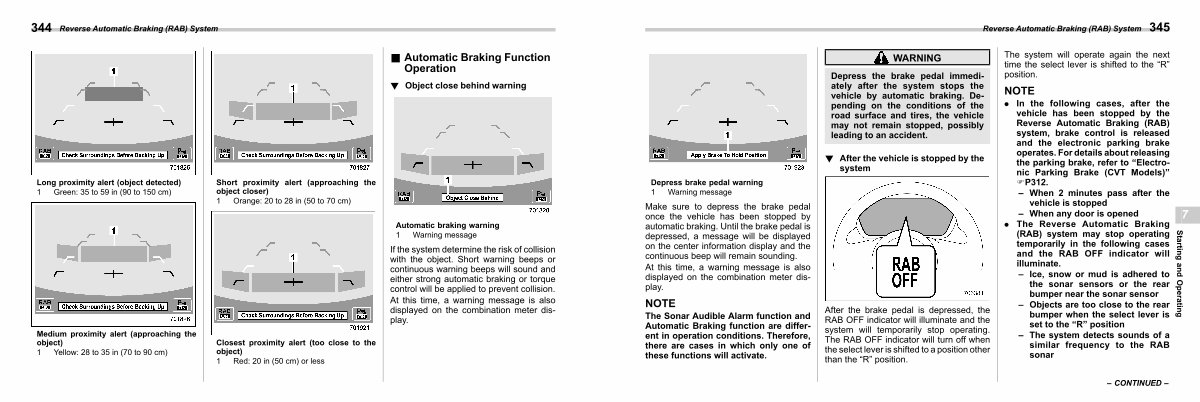

Reverse Automatic Braking( RAB) System
& Automatic Braking Function Operation s07bn08
! Object close behind warning s07bn0801
Long proximity alert( object detected) 1 Green: 35 to 59 in( 90 to 150 cm)
Short proximity alert( approaching the object closer)
1 Orange: 20 to 28 in( 50 to 70 cm)
Medium proximity alert( approaching the object)
1 Yellow: 28 to 35 in( 70 to 90 cm)
Closest proximity alert( too close to the object) 1 Red: 20 in( 50 cm) or less
Automatic braking warning 1 Warning message
If the system determine the risk of collision with the object. Short warning beeps or continuous warning beeps will sound and either strong automatic braking or torque control will be applied to prevent collision.
At this time, a warning message is also displayed on the combination meter display.
