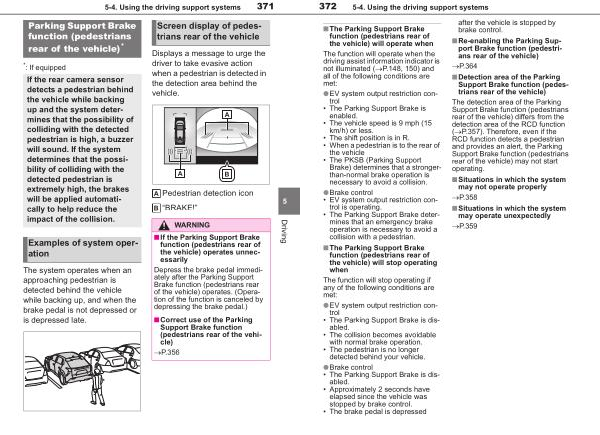

5-4 . Using the driving support systems
371
Parking Support Brake function ( pedestrians
rear of the vehicle ) *
* : If equipped
If the rear camera sensor detects a pedestrian behind the vehicle while backing up and the system determines that the possibility of colliding with the detected pedestrian is high , a buzzer will sound . If the system determines that the possibility of colliding with the detected pedestrian is extremely high , the brakes will be applied automatically to help reduce the impact of the collision .
Examples of system operation
The system operates when an approaching pedestrian is detected behind the vehicle while backing up , and when the brake pedal is not depressed or is depressed late .
Screen display of pedestrians rear of the vehicle
Displays a message to urge the driver to take evasive action when a pedestrian is detected in the detection area behind the vehicle .
Pedestrian detection icon “ BRAKE !”
WARNING
■ If the Parking Support Brake function ( pedestrians rear of the vehicle ) operates unnecessarily
Depress the brake pedal immediately after the Parking Support Brake function ( pedestrians rear of the vehicle ) operates . ( Operation of the function is canceled by depressing the brake pedal .)
■ Correct use of the Parking Support Brake function
( pedestrians rear of the vehicle )
�P . 356
5
Driving
