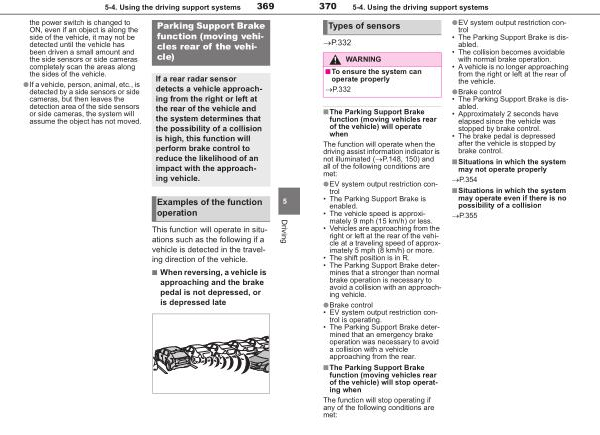

370 5-4 . Using the driving support systems
Types of sensors �P . 332
WARNING
■ To ensure the system can operate properly
�P . 332
■ The Parking Support Brake function ( moving vehicles rear of the vehicle ) will operate
when
The function will operate when the
driving assist information indicator is not illuminated ( �P . 148 , 150 ) and all of the following conditions are met :
● EV system output restriction control
• The Parking Support Brake is enabled .
• The vehicle speed is approximately 9 mph ( 15 km / h ) or less .
• Vehicles are approaching from the right or left at the rear of the vehicle at a traveling speed of approximately 5 mph ( 8 km / h ) or more .
• The shift position is in R .
• The Parking Support Brake determines that a stronger than normal
brake operation is necessary to avoid a collision with an approaching vehicle .
● Brake control
• EV system output restriction control is operating .
• The Parking Support Brake determined that an emergency brake
operation was necessary to avoid a collision with a vehicle approaching from the rear .
■ The Parking Support Brake function ( moving vehicles rear of the vehicle ) will stop operating when
The function will stop operating if any of the following conditions are
met :
● EV system output restriction control
• The Parking Support Brake is disabled .
• The collision becomes avoidable with normal brake operation .
• A vehicle is no longer approaching from the right or left at the rear of the vehicle .
● Brake control
• The Parking Support Brake is disabled .
• Approximately 2 seconds have elapsed since the vehicle was
stopped by brake control .
• The brake pedal is depressed after the vehicle is stopped by
brake control .
■ Situations in which the system may not operate properly
�P . 354
■ Situations in which the system may operate even if there is no possibility of a collision
�P . 355
