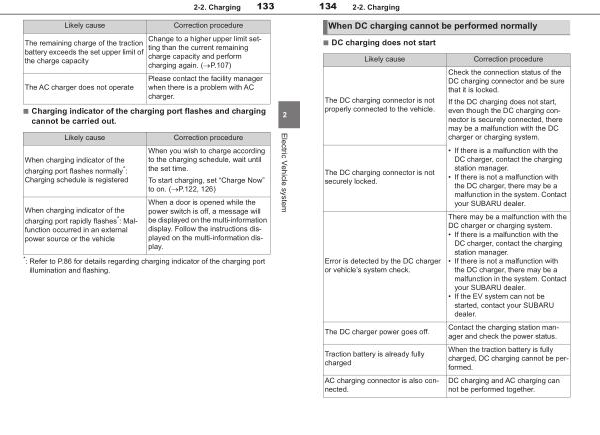

2-2 . Charging
133
Likely cause
The remaining charge of the traction battery exceeds the set upper limit of the charge capacity
The AC charger does not operate
Correction procedure
Change to a higher upper limit setting than the current remaining charge capacity and perform charging again . ( �P . 107 )
Please contact the facility manager when there is a problem with AC charger .
■ Charging indicator of the charging port flashes and charging cannot be carried out .
2
Likely cause
When charging indicator of the
charging port flashes normally * : Charging schedule is registered
When charging indicator of the
charging port rapidly flashes * : Malfunction occurred in an external power source or the vehicle
Correction procedure
When you wish to charge according to the charging schedule , wait until the set time .
To start charging , set “ Charge Now ” to on . ( �P . 122 , 126 )
When a door is opened while the power switch is off , a message will be displayed on the multi-information display . Follow the instructions displayed on the multi-information display .
Electric Vehicle system
* : Refer to P . 86 for details regarding charging indicator of the charging port illumination and flashing .
