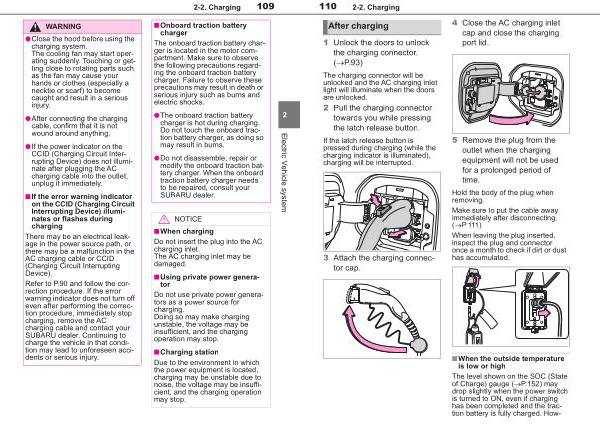

2-2 . Charging
109
WARNING
●Close the hood before using the charging system . The cooling fan may start operating suddenly . Touching or getting close to rotating parts such as the fan may cause your hands or clothes ( especially a
necktie or scarf ) to become caught and result in a serious injury .
●After connecting the charging cable , confirm that it is not wound around anything .
●If the power indicator on the
CCID ( Charging Circuit Interrupting Device ) does not illuminate after plugging the AC charging cable into the outlet , unplug it immediately .
■ If the error warning indicator on the CCID ( Charging Circuit Interrupting Device ) illuminates or flashes during charging
There may be an electrical leakage in the power source path , or there may be a malfunction in the AC charging cable or CCID ( Charging Circuit Interrupting
Device ).
Refer to P . 90 and follow the correction procedure . If the error warning indicator does not turn off even after performing the correction procedure , immediately stop charging , remove the AC charging cable and contact your
SUBARU dealer . Continuing to charge the vehicle in that condition may lead to unforeseen accidents or serious injury .
■ Onboard traction battery charger
The onboard traction battery charger is located in the motor compartment . Make sure to observe the following precautions regarding the onboard traction battery
charger . Failure to observe these precautions may result in death or serious injury such as burns and
electric shocks .
●The onboard traction battery charger is hot during charging . Do not touch the onboard traction battery charger , as doing so may result in burns .
●Do not disassemble , repair or modify the onboard traction battery charger . When the onboard traction battery charger needs to be repaired , consult your
SUBARU dealer .
NOTICE
■ When charging
Do not insert the plug into the AC charging inlet . The AC charging inlet may be damaged .
■ Using private power generator
Do not use private power generators as a power source for charging . Doing so may make charging
unstable , the voltage may be insufficient , and the charging operation may stop .
■ Charging station
Due to the environment in which the power equipment is located , charging may be unstable due to noise , the voltage may be insufficient , and the charging operation may stop .
2
Electric Vehicle system
