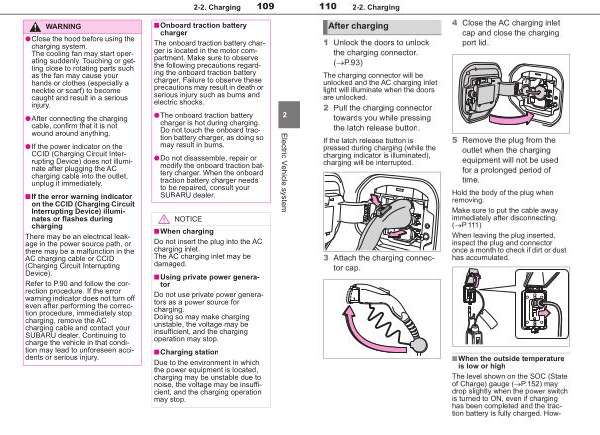

110 2-2 . Charging After charging
1 Unlock the doors to unlock the charging connector . ( �P . 93 )
The charging connector will be unlocked and the AC charging inlet light will illuminate when the doors
are unlocked .
2 Pull the charging connector towards you while pressing the latch release button .
If the latch release button is pressed during charging ( while the
charging indicator is illuminated ), charging will be interrupted .
3 Attach the charging connector cap .
4 Close the AC charging inlet cap and close the charging port lid .
5 Remove the plug from the outlet when the charging equipment will not be used for a prolonged period of time .
Hold the body of the plug when removing .
Make sure to put the cable away immediately after disconnecting . ( �P . 111 )
When leaving the plug inserted , inspect the plug and connector once a month to check if dirt or dust has accumulated .
■ When the outside temperature is low or high
The level shown on the SOC ( State of Charge ) gauge ( �P . 152 ) may drop slightly when the power switch is turned to ON , even if charging
has been completed and the traction battery is fully charged . How-
