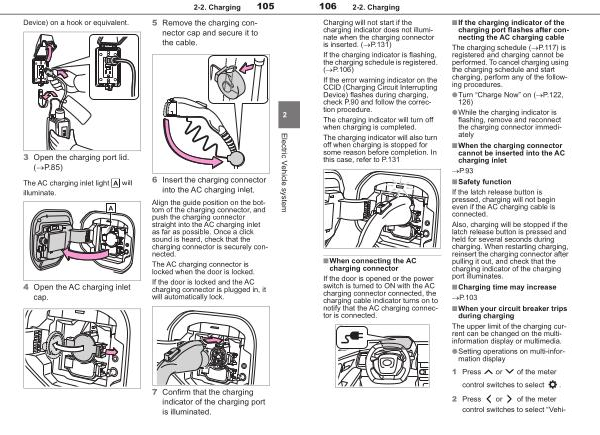

106 2-2 . Charging Charging will not start if the charging indicator does not illuminate when the charging connector is inserted . ( �P . 131 )
If the charging indicator is flashing , the charging schedule is registered . ( �P . 106 )
If the error warning indicator on the CCID ( Charging Circuit Interrupting Device ) flashes during charging ,
check P . 90 and follow the correction procedure .
The charging indicator will turn off when charging is completed .
The charging indicator will also turn off when charging is stopped for some reason before completion . In this case , refer to P . 131
■ When connecting the AC charging connector
If the door is opened or the power switch is turned to ON with the AC charging connector connected , the charging cable indicator turns on to
notify that the AC charging connector is connected .
■ If the charging indicator of the charging port flashes after connecting the AC charging cable
The charging schedule ( �P . 117 ) is registered and charging cannot be performed . To cancel charging using the charging schedule and start charging , perform any of the following procedures .
●Turn “ Charge Now ” on ( �P . 122 , 126 )
●While the charging indicator is flashing , remove and reconnect the charging connector immediately
■ When the charging connector
cannot be inserted into the AC charging inlet
�P . 93
■ Safety function
If the latch release button is
pressed , charging will not begin even if the AC charging cable is connected .
Also , charging will be stopped if the latch release button is pressed and
held for several seconds during charging . When restarting charging , reinsert the charging connector after
pulling it out , and check that the charging indicator of the charging port illuminates .
■ Charging time may increase
�P . 103
■ When your circuit breaker trips during charging
The upper limit of the charging current can be changed on the multiinformation display or multimedia .
● Setting operations on multi-information display
1 Press or of the meter control switches to select .
2 Press or of the meter control switches to select “ Vehi-
