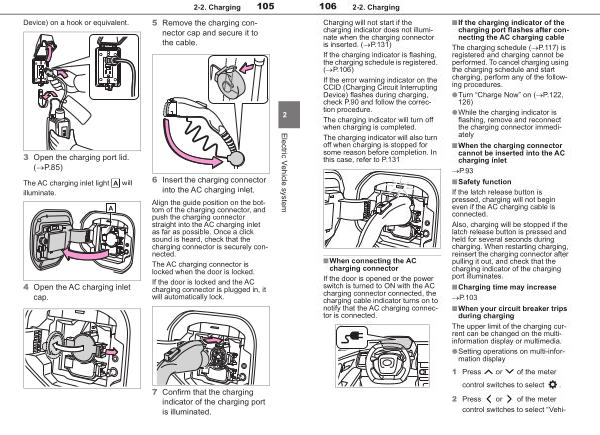

2-2 . Charging
105
Device ) on a hook or equivalent .
5 Remove the charging connector cap and secure it to the cable .
2
3 Open the charging port lid . ( �P . 85 )
The AC charging inlet light illuminate . will
4 Open the AC charging inlet cap .
6 Insert the charging connector into the AC charging inlet .
Align the guide position on the bottom of the charging connector , and push the charging connector straight into the AC charging inlet as far as possible . Once a click sound is heard , check that the charging connector is securely connected .
The AC charging connector is locked when the door is locked .
If the door is locked and the AC charging connector is plugged in , it will automatically lock .
Electric Vehicle system
7 Confirm that the charging indicator of the charging port is illuminated .
