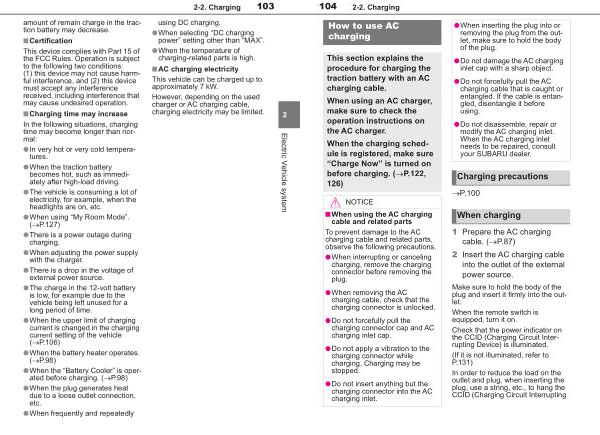

104 2-2 . Charging
How to use AC charging
This section explains the procedure for charging the traction battery with an AC charging cable .
When using an AC charger , make sure to check the operation instructions on the AC charger .
When the charging schedule is registered , make sure “ Charge Now ” is turned on before charging . ( �P . 122 , 126 )
NOTICE
■ When using the AC charging cable and related parts
To prevent damage to the AC charging cable and related parts , observe the following precautions .
●When interrupting or canceling
charging , remove the charging connector before removing the plug .
●When removing the AC charging cable , check that the charging connector is unlocked .
●Do not forcefully pull the charging connector cap and AC
charging inlet cap .
●Do not apply a vibration to the charging connector while charging . Charging may be stopped .
●Do not insert anything but the charging connector into the AC charging inlet .
●When inserting the plug into or removing the plug from the outlet , make sure to hold the body of the plug .
●Do not damage the AC charging inlet cap with a sharp object .
●Do not forcefully pull the AC charging cable that is caught or entangled . If the cable is entangled , disentangle it before
using .
●Do not disassemble , repair or modify the AC charging inlet . When the AC charging inlet
needs to be repaired , consult your SUBARU dealer .
Charging precautions �P . 100
When charging
1 Prepare the AC charging cable . ( �P . 87 )
2 Insert the AC charging cable into the outlet of the external power source .
Make sure to hold the body of the
plug and insert it firmly into the outlet .
When the remote switch is equipped , turn it on .
Check that the power indicator on the CCID ( Charging Circuit Interrupting Device ) is illuminated .
( If it is not illuminated , refer to P . 131 )
In order to reduce the load on the outlet and plug , when inserting the plug , use a string , etc ., to hang the CCID ( Charging Circuit Interrupting
