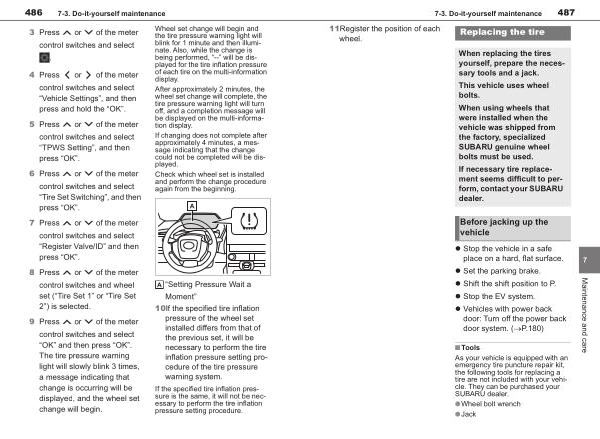

486 7-3 . Do-it-yourself maintenance
3 Press or of the meter control switches and select
.
4 Press or of the meter control switches and select “ Vehicle Settings ”, and then press and hold the “ OK ”.
5 Press or of the meter control switches and select “ TPWS Setting ”, and then press “ OK ”.
6 Press or of the meter control switches and select “ Tire Set Switching ”, and then press “ OK ”.
Wheel set change will begin and the tire pressure warning light will blink for 1 minute and then illuminate . Also , while the change is being performed , “ -- ” will be displayed for the tire inflation pressure of each tire on the multi-information display .
After approximately 2 minutes , the wheel set change will complete , the tire pressure warning light will turn
off , and a completion message will be displayed on the multi-information display .
If changing does not complete after approximately 4 minutes , a message indicating that the change could not be completed will be displayed .
Check which wheel set is installed and perform the change procedure
again from the beginning .
7 Press or of the meter control switches and select “ Register Valve / ID ” and then press “ OK ”.
8 Press or of the meter control switches and wheel set (“ Tire Set 1 ” or “ Tire Set 2 ”) is selected .
9 Press or of the meter control switches and select “ OK ” and then press “ OK ”. The tire pressure warning light will slowly blink 3 times , a message indicating that change is occurring will be displayed , and the wheel set change will begin .
“ Setting Pressure Wait a Moment ”
10If the specified tire inflation pressure of the wheel set installed differs from that of the previous set , it will be necessary to perform the tire inflation pressure setting procedure of the tire pressure warning system .
If the specified tire inflation pressure is the same , it will not be necessary to perform the tire inflation pressure setting procedure .
