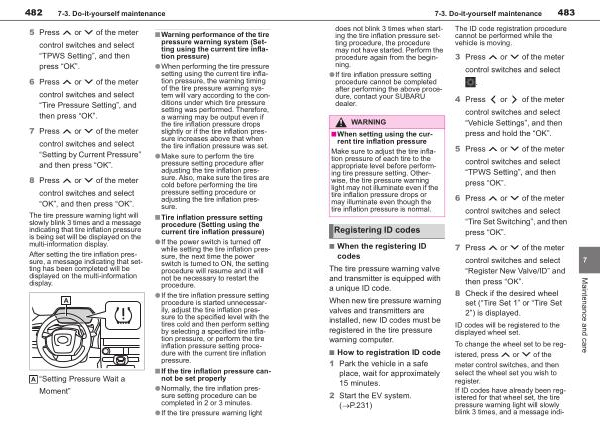

482 7-3 . Do-it-yourself maintenance
5 Press or of the meter control switches and select “ TPWS Setting ”, and then press “ OK ”.
6 Press or of the meter control switches and select “ Tire Pressure Setting ”, and then press “ OK ”.
7 Press or of the meter control switches and select “ Setting by Current Pressure ” and then press “ OK ”.
8 Press or of the meter control switches and select “ OK ”, and then press “ OK ”.
The tire pressure warning light will slowly blink 3 times and a message indicating that tire inflation pressure is being set will be displayed on the multi-information display .
After setting the tire inflation pressure , a message indicating that setting has been completed will be displayed on the multi-information
display .
“ Setting Pressure Wait a Moment ”
■ Warning performance of the tire pressure warning system ( Setting using the current tire inflation pressure )
●When performing the tire pressure setting using the current tire inflation pressure , the warning timing of the tire pressure warning system will vary according to the conditions under which tire pressure setting was performed . Therefore ,
a warning may be output even if the tire inflation pressure drops slightly or if the tire inflation pressure increases above that when the tire inflation pressure was set .
●Make sure to perform the tire pressure setting procedure after adjusting the tire inflation pressure . Also , make sure the tires are cold before performing the tire pressure setting procedure or
adjusting the tire inflation pressure .
■ Tire inflation pressure setting procedure ( Setting using the
current tire inflation pressure )
●If the power switch is turned off
while setting the tire inflation pressure , the next time the power switch is turned to ON , the setting
procedure will resume and it will not be necessary to restart the procedure .
●If the tire inflation pressure setting procedure is started unnecessarily , adjust the tire inflation pressure to the specified level with the tires cold and then perform setting
by selecting a specified tire inflation pressure , or perform the tire inflation pressure setting procedure with the current tire inflation pressure .
■ If the tire inflation pressure cannot be set properly
● Normally , the tire inflation pressure setting procedure can be completed in 2 or 3 minutes .
●If the tire pressure warning light
