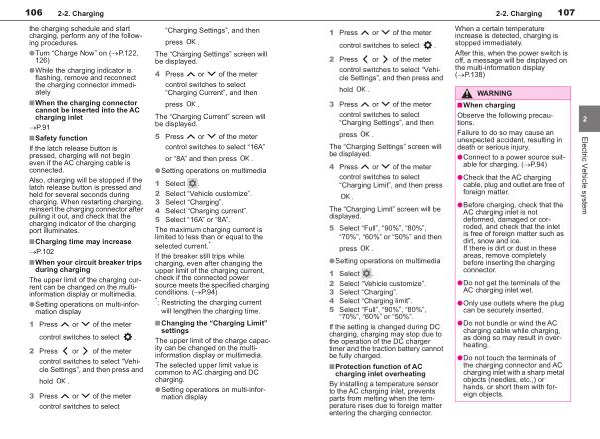

106 2-2 . Charging the charging schedule and start charging , perform any of the following procedures .
●Turn “ Charge Now ” on ( �P . 122 , 126 )
●While the charging indicator is flashing , remove and reconnect
the charging connector immediately
■ When the charging connector cannot be inserted into the AC
charging inlet
�P . 91
■ Safety function
If the latch release button is pressed , charging will not begin
even if the AC charging cable is connected .
Also , charging will be stopped if the latch release button is pressed and held for several seconds during
charging . When restarting charging , reinsert the charging connector after pulling it out , and check that the
charging indicator of the charging port illuminates .
■ Charging time may increase �P . 102
■ When your circuit breaker trips during charging
The upper limit of the charging current can be changed on the multiinformation display or multimedia .
● Setting operations on multi-information display
1 Press or of the meter control switches to select .
2 Press or of the meter
control switches to select “ Vehicle Settings ”, and then press and
hold .
3 Press or of the meter control switches to select
“ Charging Settings ”, and then press . The “ Charging Settings ” screen will be displayed .
4 Press or of the meter
control switches to select “ Charging Current ”, and then
press .
The “ Charging Current ” screen will be displayed .
5 Press or of the meter control switches to select “ 16A ” or “ 8A ” and then press .
● Setting operations on multimedia
1 Select . 2 Select “ Vehicle customize ”. 3 Select “ Charging ”. 4 Select “ Charging current ”. 5 Select “ 16A ” or “ 8A ”.
The maximum charging current is limited to less than or equal to the
selected current . *
If the breaker still trips while charging , even after changing the upper limit of the charging current , check if the connected power
source meets the specified charging conditions . ( �P . 94 ) * : Restricting the charging current
will lengthen the charging time .
■ Changing the “ Charging Limit ” settings
The upper limit of the charge capacity can be changed on the multiinformation display or multimedia .
The selected upper limit value is common to AC charging and DC charging .
● Setting operations on multi-information display
