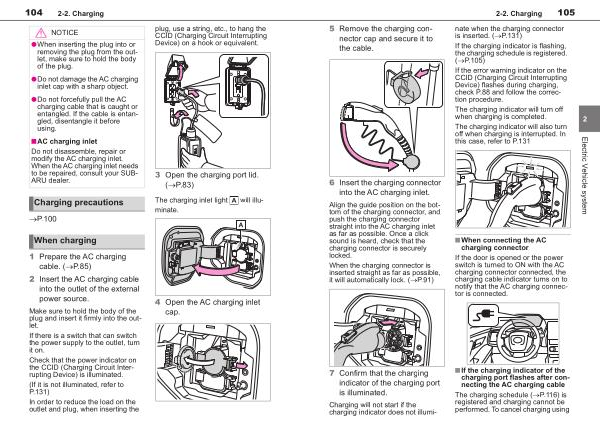

2-2 . Charging
105
5 Remove the charging connector cap and secure it to the cable .
6 Insert the charging connector into the AC charging inlet .
Align the guide position on the bottom of the charging connector , and push the charging connector straight into the AC charging inlet as far as possible . Once a click sound is heard , check that the charging connector is securely locked .
When the charging connector is inserted straight as far as possible , it will automatically lock . ( �P . 91 )
7 Confirm that the charging indicator of the charging port is illuminated .
Charging will not start if the charging indicator does not illuminate when the charging connector is inserted . ( �P . 131 )
If the charging indicator is flashing , the charging schedule is registered . ( �P . 105 )
If the error warning indicator on the CCID ( Charging Circuit Interrupting
Device ) flashes during charging , check P . 88 and follow the correction procedure .
The charging indicator will turn off when charging is completed .
The charging indicator will also turn off when charging is interrupted . In
this case , refer to P . 131
■ When connecting the AC charging connector
If the door is opened or the power switch is turned to ON with the AC charging connector connected , the charging cable indicator turns on to
notify that the AC charging connector is connected .
2
Electric Vehicle system
■ If the charging indicator of the charging port flashes after connecting the AC charging cable
The charging schedule ( �P . 116 ) is registered and charging cannot be
performed . To cancel charging using
