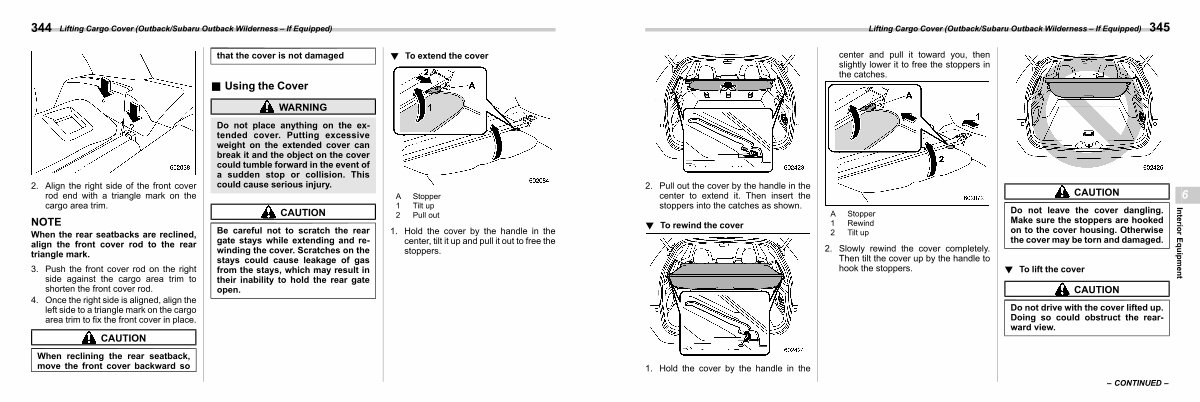

2. Pull out the cover by the handle in the center to extend it. Then insert the stoppers into the catches as shown.
! To rewind the cover
s06ak0103
|
A Stopper 1 Rewind 2 Tilt up
2. Slowly rewind the cover completely. Then tilt the cover up by the handle to hook the stoppers.
|
CAUTION
Do not leave the cover dangling. Make sure the stoppers are hooked on to the cover housing. Otherwise the cover may be torn and damaged.
! To lift the cover
s06ak0102
|
6
Interior Equipment
|
|||||
CAUTION |
||||||||
Do not drive with the cover lifted up. Doing so could obstruct the rearward view. |
||||||||
1. Hold the cover by the handle in the |
||||||||
– CONTINUED – |
