346

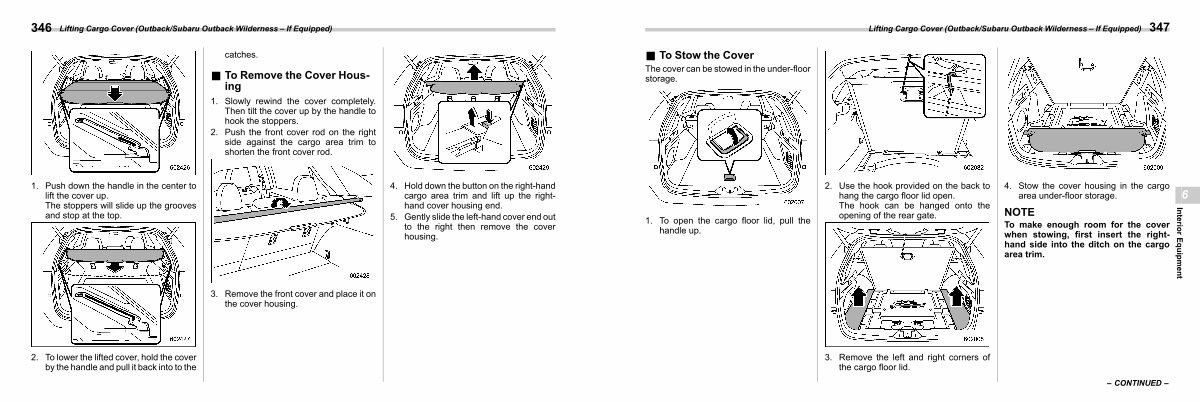

Lifting Cargo Cover( Outback / Subaru Outback Wilderness – If Equipped)
catches.
& To Remove the Cover Housing s06ak02
1. Slowly rewind the cover completely. Then tilt the cover up by the handle to hook the stoppers.
2. Push the front cover rod on the right side against the cargo area trim to shorten the front cover rod.
1. Push down the handle in the center to lift the cover up. The stoppers will slide up the grooves and stop at the top.
4. Hold down the button on the right-hand cargo area trim and lift up the righthand cover housing end.
5. Gently slide the left-hand cover end out to the right then remove the cover housing.
3. Remove the front cover and place it on the cover housing.
2. To lower the lifted cover, hold the cover by the handle and pull it back into to the
