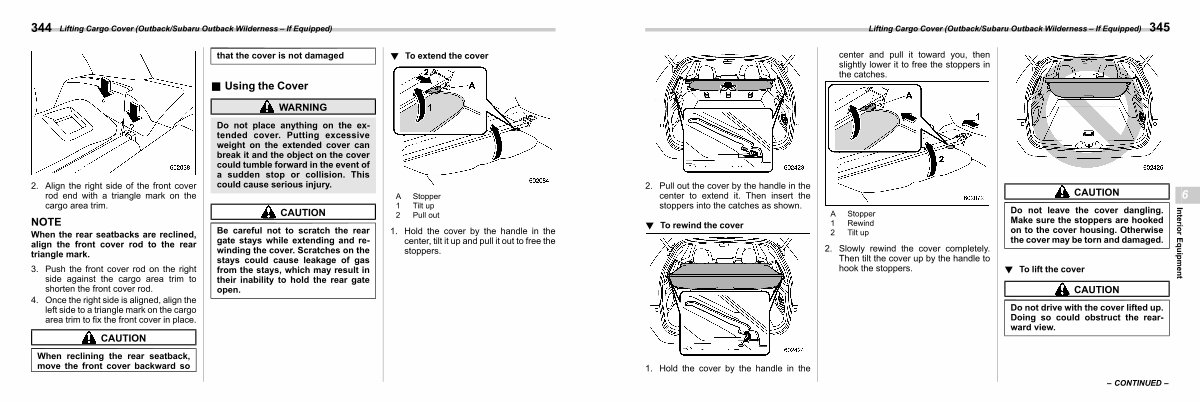

Lifting Cargo Cover( Outback / Subaru Outback Wilderness – If Equipped)
that the cover is not damaged! To extend the cover s06ak0101
2. Align the right side of the front cover rod end with a triangle mark on the cargo area trim.
NOTE
When the rear seatbacks are reclined, align the front cover rod to the rear triangle mark.
3. Push the front cover rod on the right side against the cargo area trim to shorten the front cover rod.
4. Once the right side is aligned, align the left side to a triangle mark on the cargo area trim to fix the front cover in place.
CAUTION
When reclining the rear seatback, move the front cover backward so
& Using the Cover WARNING s06ak01
Do not place anything on the extended cover. Putting excessive weight on the extended cover can break it and the object on the cover could tumble forward in the event of a sudden stop or collision. This could cause serious injury.
CAUTION
Be careful not to scratch the rear gate stays while extending and rewinding the cover. Scratches on the stays could cause leakage of gas from the stays, which may result in their inability to hold the rear gate open.
A Stopper 1 Tilt up 2 Pull out
1. Hold the cover by the handle in the center, tilt it up and pull it out to free the stoppers.
