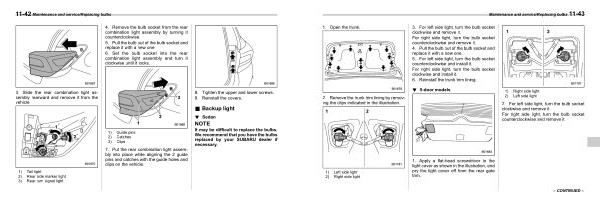

11-42 Maintenance and service / Replacing bulbs
4 . Remove the bulb socket from the rear combination light assembly by turning it counterclockwise .
5 . Pull the bulb out of the bulb socket and replace it with a new one .
6 . Set the bulb socket into the rear combination light assembly and turn it clockwise until it locks .
3 . Slide the rear combination light assembly rearward and remove it from the vehicle .
1 ) |
Tail light |
2 ) |
Rear side marker light |
3 ) |
Rear turn signal light |
1 ) |
Guide pins |
2 ) |
Catches |
3 ) |
Clips |
7 . Put the rear combination light assembly into place while aligning the 2 guide pins and catches with the guide holes and clips on the vehicle .
8 . Tighten the upper and lower screws . 9 . Reinstall the covers .
& Backup light
S11BE06
! Sedan
S11BE0601
NOTE
It may be difficult to replace the bulbs . We recommend that you have the bulbs replaced by your SUBARU dealer if necessary .
