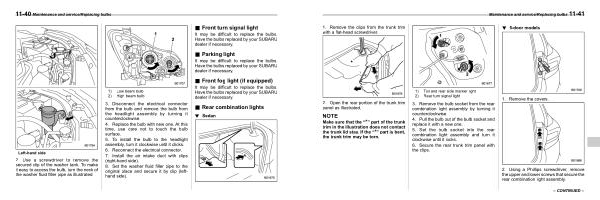

Maintenance and service / Replacing bulbs 11-41
1 . Remove the clips from the trunk trim with a flat-head screwdriver .
! 5-door models
S11BE0504
2 . Open the rear portion of the trunk trim panel as illustrated .
NOTE
Make sure that the “*” part of the trunk trim in the illustration does not contact the trunk lid stay . If the “*” part is bent , the trunk trim may be torn .
1 ) |
Tail and rear side marker light |
2 ) |
Rear turn signal light |
3 . Remove the bulb socket from the rear combination light assembly by turning it counterclockwise .
4 . Pull the bulb out of the bulb socket and replace it with a new one .
5 . Set the bulb socket into the rear combination light assembly and turn it clockwise until it locks .
6 . Secure the rear trunk trim panel with the clips .
1 . Remove the covers .
2 . Using a Phillips screwdriver , remove the upper and lower screws that secure the rear combination light assembly .
– CONTINUED –
