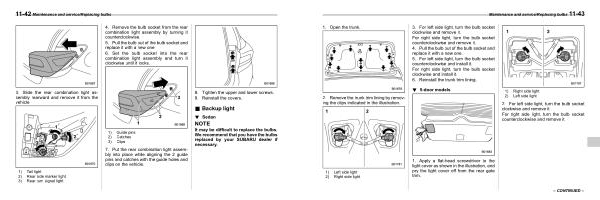

Maintenance and service / Replacing bulbs 11-43
1 . Open the trunk .
3 . For left side light , turn the bulb socket clockwise and remove it .
For right side light , turn the bulb socket counterclockwise and remove it .
4 . Pull the bulb out of the bulb socket and replace it with a new one .
5 . For left side light , turn the bulb socket counterclockwise and install it .
For right side light , turn the bulb socket clockwise and install it .
6 . Reinstall the trunk trim lining .
2 . Remove the trunk trim lining by removing the clips indicated in the illustration . |
! 5-door models |
S11BE0602 |
|
1 ) |
Right side light |
2 ) |
Left side light |
2 . For left side light , turn the bulb socket clockwise and remove it .
For right side light , turn the bulb socket counterclockwise and remove it .
|
1 ) |
Left side light |
2 ) |
Right side light |
1 . Apply a flat-head screwdriver to the light cover as shown in the illustration , and pry the light cover off from the rear gate trim .
– CONTINUED –
