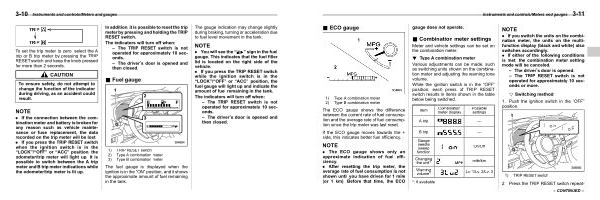

Instruments and controls / Meters and gauges 3-11
& ECO gauge
1 ) |
Type A combination meter |
2 ) |
Type B combination meter |
S03AD12
The ECO gauge shows the difference between the current rate of fuel consumption and the average rate of fuel consumption since the trip meter was last reset .
If the ECO gauge moves towards the + side , this indicates better fuel efficiency .
NOTE
. The ECO gauge shows only an approximate indication of fuel efficiency . . After resetting the trip meter , the average rate of fuel consumption is not shown until you have driven for 1 mile ( or 1 km ). Before that time , the ECO gauge does not operate .
& Combination meter settings
S03AD16
Meter and vehicle settings can be set on the combination meter .
! Type A combination meter
S03AD1601
Various adjustments can be made , such as switching units shown on the combination meter and adjusting the warning tone volume .
While the ignition switch is in the “ OFF ” position , each press of TRIP RESET switch results in items shown in the table below being switched .
Item
Combination meter display
Possible settings
A trip —
B trip — Gauge needle sweep function
Changing the unit *
Warning volume *
*: If available
On / Off
mile / km
Lv . 1 / Lv . 2 / Lv . 3
NOTE
. If you switch the units on the combination meter , the units on the multifunction display ( black and white ) also switches accordingly . . If either of the following conditions is met , the combination meter setting mode will be canceled . – The driver ’ s door is opened . – The TRIP RESET switch is not operated for approximately 10 seconds or more .
! Switching method
S03AD160101
1 . Push the ignition switch in the “ OFF ” position .
1 ) TRIP RESET switch 2 . Press the TRIP RESET switch repeat-
– CONTINUED –
