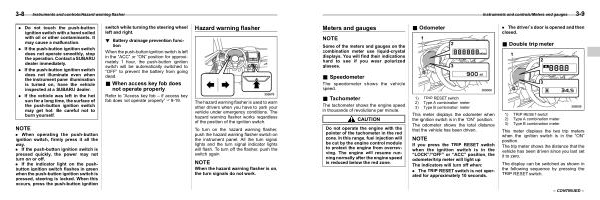

Meters and gauges
S03AD
NOTE
Some of the meters and gauges on the combination meter use liquid-crystal displays . You will find their indications hard to see if you wear polarized glasses .
|
& Odometer |
|
|
S03AD04 |
. The driver ’ s door is opened and then closed .
& Double trip meter
S03AD05
|
|
& Speedometer
S03AD03
The speedometer shows the vehicle speed .
|
|
|
|
& Tachometer
S03AD06
The tachometer shows the engine speed in thousands of revolutions per minute .
CAUTION
Do not operate the engine with the pointer of the tachometer in the red zone . In this range , fuel injection will be cut by the engine control module to protect the engine from overrevving . The engine will resume running normally after the engine speed is reduced below the red zone .
1 ) |
TRIP RESET switch |
2 ) |
Type A combination meter |
3 ) |
Type B combination meter |
This meter displays the odometer when the ignition switch is in the “ ON ” position .
The odometer shows the total distance that the vehicle has been driven .
NOTE
If you press the TRIP RESET switch when the ignition switch is in the “ LOCK ”/“ OFF ” or “ ACC ” position , the odometer / trip meter will light up .
The indicators will turn off when :
. The TRIP RESET switch is not operated for approximately 10 seconds .
1 ) |
TRIP RESET switch |
2 ) |
Type A combination meter |
3 ) |
Type B combination meter |
This meter displays the two trip meters when the ignition switch is in the “ ON ” position .
The trip meter shows the distance that the vehicle has been driven since you last set it to zero .
The display can be switched as shown in the following sequence by pressing the TRIP RESET switch .
– CONTINUED –
