MAINTENANCE AND SERVICE 525 4. Bounce the vehicle several times.
Headlight aim adjustment
s11be5702
S _ B02405-W
11. Tighten the upper and lower screws. 12. Reinstall the side cover.
OTHER BULBS s11be29
It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
Adjustment direction mark
S _ B02495-W
1. Turn the screw A clockwise or counterclockwise to adjust it. Remember the direction of the rotation and number of rotations.

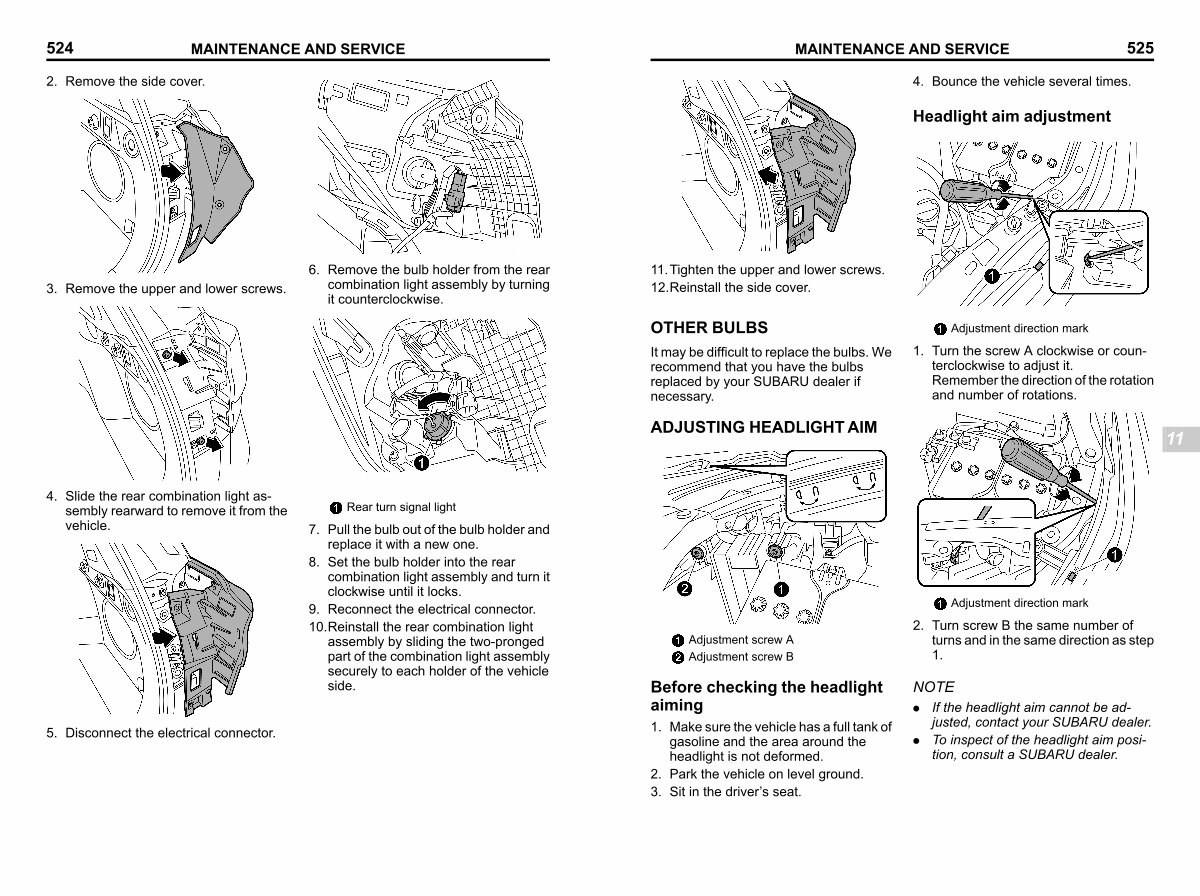

ADJUSTING HEADLIGHT AIM s11be57
11
Adjustment screw A Adjustment screw B
S _ B02494-W
Adjustment direction mark
S _ B02496-W
2. Turn screw B the same number of turns and in the same direction as step 1.
Before checking the headlight aiming s11be5701
1. Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed.
2. Park the vehicle on level ground. 3. Sit in the driver’ s seat.
NOTE
. If the headlight aim cannot be adjusted, contact your SUBARU dealer.
. To inspect of the headlight aim position, consult a SUBARU dealer.
